COMMON DRAIN, 2 ELEMENTS WITH BUILT-IN DIODE AND RESISTOR
DS Breakdown Voltage-Min:
12 V
Drain Current-Max (ID):
33 A
Drain-source On Resistance-Max:
0.00285 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
JESD-30 Code:
R-PBCC-N10
Number of Elements:
2
Number of Terminals:
10
Operating Mode:
DEPLETION MODE
Operating Temperature-Max:
150 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
3.1 W
Pulsed Drain Current-Max (IDM):
135 A
Surface Mount:
YES
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
EFC2K102ANUZTDG Frequently Asked Questions (FAQs)
A good PCB layout for the EFC2K102ANUZTDG should consider the following: keep the input and output capacitors close to the pins, use a solid ground plane, and minimize the length of the traces between the capacitor and the pins. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the device operates within the specified temperature range, provide adequate heat sinking, use a thermal interface material (TIM) between the device and the heat sink, and avoid exposing the device to extreme temperatures during storage or handling.
The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR ceramic capacitor, such as X5R or X7R, to minimize the equivalent series resistance (ESR) and ensure stable operation.
To ensure proper operation, follow a controlled power-up sequence: apply the input voltage, then the enable signal. During power-down, remove the enable signal before removing the input voltage. This helps prevent unwanted voltage transients and ensures a clean shutdown.
To minimize EMI and RFI, use a shielded enclosure, keep the device and its associated components away from antennas and other EMI-sensitive components, and use EMI filters or ferrite beads on the input and output lines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EFC2K102ANUZTDG Overview

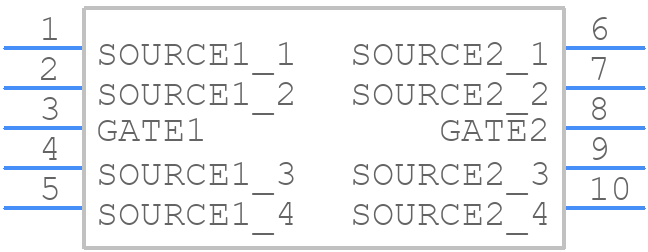

Use the download button to access the EFC2K102ANUZTDG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EFC2K,
or try a keyword search, such as Power Field-Effect Transistors
