EFC2K103NUZTDG - onsemi

Description: Low Rss(on); Small size and narrow width; Low Gate Charge; 2kV ESD HBM; Common-Drain Type; ESD Diode-Protected Gate; RoHS compliance

Download EFC2K103NUZTDG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

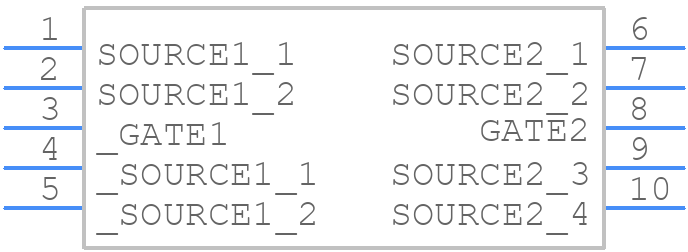

Symbol
EFC2K103NUZTDG - onsemi - PCB symbol
click to zoom
PCB Footprints
EFC2K103NUZTDG - onsemi PCB footprint - Other - Other - EFC2K103NUZTDG-1
click to zoom
3D Models
EFC2K103NUZTDG - onsemi - 3D model - Other - EFC2K103NUZTDG-1
click to zoom

EFC2K103NUZTDG Details

  • Manufacturer Part Number:

    EFC2K103NUZTDG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    WLCSP10, 3.54x1.77x0.14

  • Manufacturer Package Code:

    567XB

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Case Connection:

    SOURCE

  • Configuration:

    COMMON DRAIN, 2 ELEMENTS WITH BUILT-IN DIODE AND RESISTOR

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-XBCC-N10

  • Number of Elements:

    2

  • Number of Terminals:

    10

  • Operating Mode:

    DEPLETION MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    3.3 W

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

EFC2K103NUZTDG Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve thermal performance. A minimum of 2 oz copper thickness and a thermal relief pattern is recommended. Refer to the onsemi application note AND9093/D for more details.
  • The device requires a stable input voltage and a proper biasing circuit to ensure optimal performance. A voltage regulator and a bias resistor network are recommended to ensure a stable input voltage and proper biasing.
  • The device is sensitive to electrostatic discharge (ESD) and can be damaged by excessive voltage or current. Handle the device with an ESD wrist strap or mat, and avoid touching the pins or leads. Use an anti-static bag or tube for storage.
  • Use a thermal imaging camera to detect hotspots, and check for proper thermal design and cooling. Use a logic analyzer or oscilloscope to troubleshoot malfunction issues. Refer to the onsemi application note AND9093/D for troubleshooting guidelines.
  • The EFC2K103NUZTDG meets the onsemi quality and reliability standards, which include AEC-Q101 and ISO/TS 16949 certifications. The device is also RoHS and REACH compliant.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EFC2K103NUZTDG Overview

Use the download button to access the EFC2K103NUZTDG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EFC2K, or try a keyword search, such as Power Field-Effect Transistors
