EFC6601R-TR - onsemi

Description: 2.5V drive; Protection diode in; Common-drain type; 2KV ESD HBM

Download EFC6601R-TR Model
Schematic
symbols

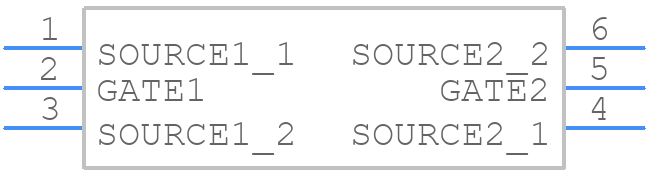

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EFC6601R-TR - onsemi PCB footprint - Other - Other - EFC6601R-TR-2
click to zoom
3D Models
EFC6601R-TR - onsemi  - 3D model - Other - EFC6601R-TR-2
click to zoom

EFC6601R-TR Details

  • Manufacturer Part Number:

    EFC6601R-TR

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WLCSP 6 Lead 2.7x1.81 / EFCP2718-6CE-020

  • Pin Count:

    6

  • Manufacturer Package Code:

    567HS

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30
