EHT-113-01-F-D-SM-P footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

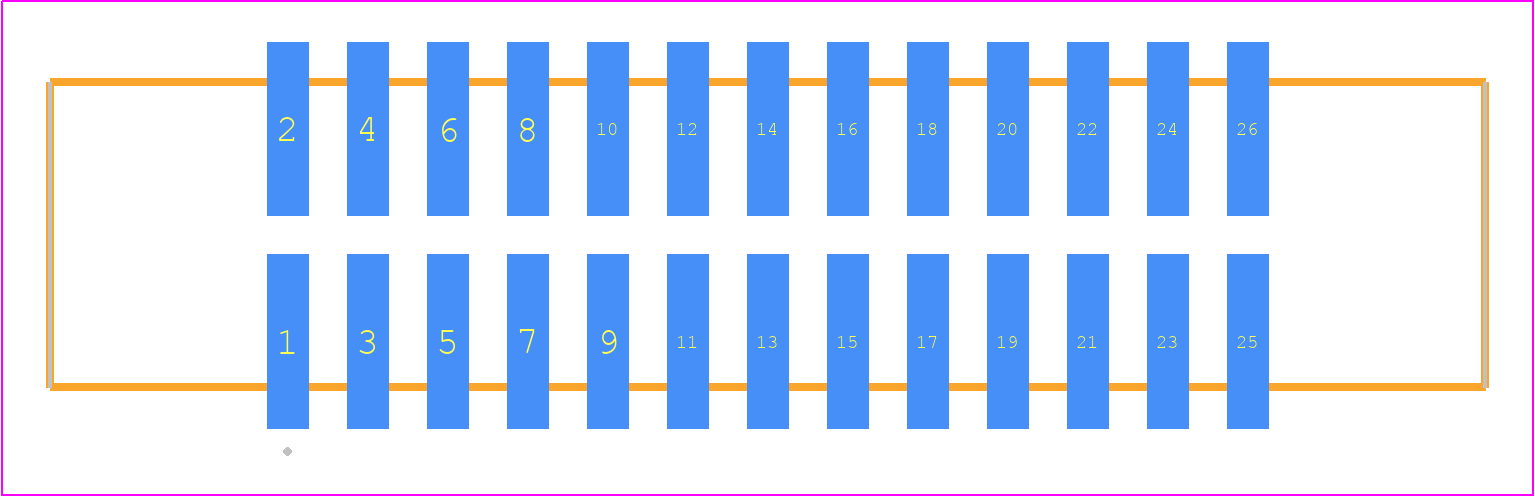

EHT-113-01-F-D-SM-P - SAMTEC PCB footprint - Other - Other - EHT-113-01-XX-D-SM-Y

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EHT-113-01-F-D-SM-P
Part Number EHT-113-01-F-D-SM-P
Manufacturer SAMTEC
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - EHT-113-01-XX-D-SM-Y
Released Date Jun 19, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

EHT-113-01-F-D-SM-P Details

Manufacturer Part Number:
EHT-113-01-F-D-SM-P
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
12
Body Breadth:
0.3 inch
Body Depth:
0.375 inch
Body Length:
1.567 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD FLASH OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
Filter Feature:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
Mating Contact Pitch:
0.079 inch
Mating Contact Row Spacing:
0.079 inch
Mixed Contacts:
NO
Mounting Option 1:
LATCH & EJECT
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
5.334 mm
Plating Thickness:
3u inch
Polarization Key:
POLARIZED HOUSING
Reference Standard:
UL
Terminal Pitch:
2.0066 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
26

EHT-113-01-F-D-SM-P Frequently Asked Questions (FAQs)

The recommended torque for the screws on the EHT-113-01-F-D-SM-P connector is 0.5-1.5 N·m (4-12 in·lb) according to Samtec's application notes.
Yes, the EHT-113-01-F-D-SM-P is designed for rugged and high-reliability applications, including those with high vibrations. The connector's screw-machined terminals and tin-lead plating provides a secure and reliable connection in such environments.
The EHT-113-01-F-D-SM-P connector has a temperature range of -55°C to 125°C, making it suitable for most high-temperature applications. However, it's essential to ensure that the connector is properly installed and secured to prevent thermal stress.
The EHT-113-01-F-D-SM-P connector is designed for high-frequency applications, with a bandwidth of up to 10 GHz. The connector's design and materials minimize signal loss and insertion loss, making it suitable for high-frequency uses.
The mating and unmating force of the EHT-113-01-F-D-SM-P connector is typically around 10-20 N (2-4 lbf) according to Samtec's specifications. However, this force may vary depending on the specific application and environment.
