EHT-113-01-S-D-SM-K - SAMTEC

EHT-113-01-S-D-SM-K Details

• Manufacturer Part Number:

  EHT-113-01-S-D-SM-K

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Vietnam

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Samtec Inc

• YTEOL:

  12

• Additional Feature:

  POLYIMIDE FILM PICK&PLACE PAD

• Body Breadth:

  0.3 inch

• Body Depth:

  0.375 inch

• Body Length:

  1.567 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  GOLD (30) OVER NICKEL (50)

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  MALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  SQ PIN-SKT

• Filter Feature:

  NO

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.079 inch

• Mating Contact Row Spacing:

  0.079 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LATCH & EJECT

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

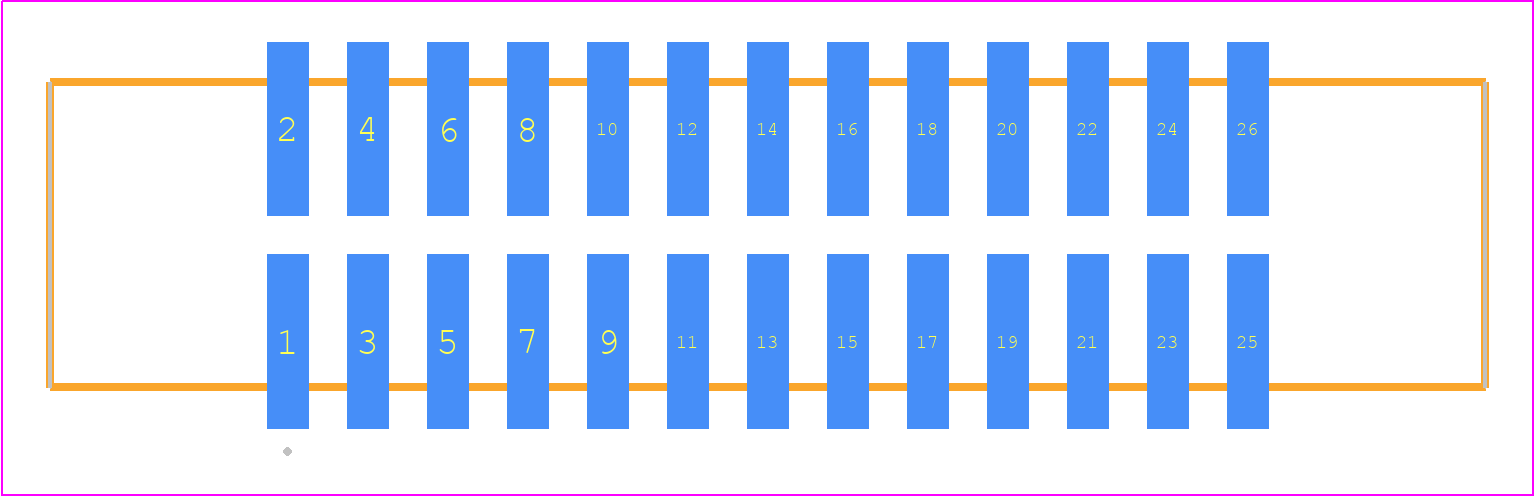

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  5.334 mm

• Plating Thickness:

  30u inch

• Polarization Key:

  POLARIZED HOUSING

• Reference Standard:

  UL

• Terminal Pitch:

  2.0066 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  26
