EKMG350ELL221MHB5D - Chemi-Con

Description: Aluminum Electrolytic Capacitors - Radial Leaded 35volts 220uF 8x11.5

Download EKMG350ELL221MHB5D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EKMG350ELL221MHB5D - Chemi-Con - PCB symbol
click to zoom
PCB Footprints

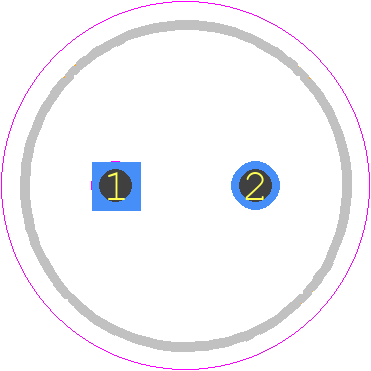

EKMG350ELL221MHB5D - Chemi-Con PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 8X11.5*-*
click to zoom
3D Models
EKMG350ELL221MHB5D - Chemi-Con - 3D model - Capacitor, Polarized Radial Diameter - 8X11.5*-*
click to zoom

EKMG350ELL221MHB5D Details

  • Manufacturer Part Number:

    EKMG350ELL221MHB5D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Indonesia, Mainland China, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Chemi-Con

  • YTEOL:

    0

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.231 mA

  • Length:

    11.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    270 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.14

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Pitch:

    3.5 mm

  • Terminal Shape:

    WIRE

EKMG350ELL221MHB5D Frequently Asked Questions (FAQs)

  • Chemi-Con recommends derating the voltage rating by 10-20% to ensure reliable operation and to account for voltage spikes or surges.
  • The EKMG350ELL221MHB5D is designed for general-purpose use, but it may not be suitable for high-frequency applications (>100 kHz) due to its equivalent series resistance (ESR) and inductance. For high-frequency applications, consider using a capacitor with lower ESR and inductance.
  • The EKMG350ELL221MHB5D has a maximum operating temperature of 105°C, but it's recommended to derate the voltage and current ratings at higher temperatures to ensure reliability. Consult the datasheet and Chemi-Con's application notes for more information.
  • Chemi-Con recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a cooling rate of 2-4°C/second to prevent damage to the capacitor.
  • The EKMG350ELL221MHB5D has a moisture sensitivity level (MSL) of 2, which means it can withstand normal humidity levels. However, it's recommended to follow proper storage and handling procedures to prevent moisture absorption.
