The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the EKMG401ELL1R0MF11D is designed to withstand high vibrations. It has a vibration endurance of 10-2000Hz, 1.5mm amplitude, and 3 hours per axis. However, it's essential to ensure that the capacitor is properly secured to the PCB to prevent mechanical stress.
The EKMG401ELL1R0MF11D has a maximum operating temperature of 125°C (257°F). While it can operate at high temperatures, it's essential to derate the capacitor's voltage and current ratings according to the temperature derating curve provided in the datasheet.
The ESR of the EKMG401ELL1R0MF11D is not explicitly stated in the datasheet. However, according to Chemi-Con's general specifications for the EKMG series, the ESR is typically around 10-20 mΩ at 100 kHz. For more accurate information, it's recommended to contact Chemi-Con directly or consult their application notes.
The EKMG401ELL1R0MF11D has a moisture sensitivity level (MSL) of 2, which means it can withstand a maximum of 30°C (86°F) and 60% relative humidity for 168 hours. However, it's essential to ensure that the capacitor is properly sealed and protected from moisture to prevent damage or degradation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EKMG401ELL1R0MF11D Overview

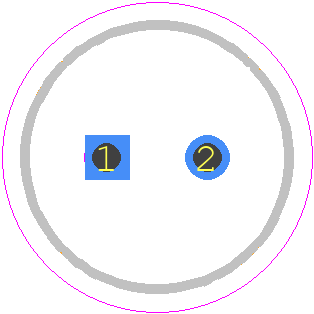

Use the download button to access the EKMG401ELL1R0MF11D schematic symbol, PCB footprint, and 3D model.
