The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the EKMG500ELL101MHB5D is designed to withstand high vibrations. It has a vibration endurance of 10-2000Hz, 1.5mm single amplitude, and can operate in environments with vibrations up to 30G.
Yes, the EKMG500ELL101MHB5D has a maximum operating temperature of 125°C (257°F), making it suitable for use in high-temperature applications. However, the capacitance and ESR may change with temperature, so it's essential to consider these factors in your design.
The ESR of the EKMG500ELL101MHB5D is 0.015Ω at 100kHz, which is relatively low and makes it suitable for high-frequency applications.
Yes, the EKMG500ELL101MHB5D has a moisture resistance rating of 85°C/85% RH, which means it can operate in humid environments. However, it's essential to follow proper storage and handling procedures to prevent moisture absorption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EKMG500ELL101MHB5D Overview

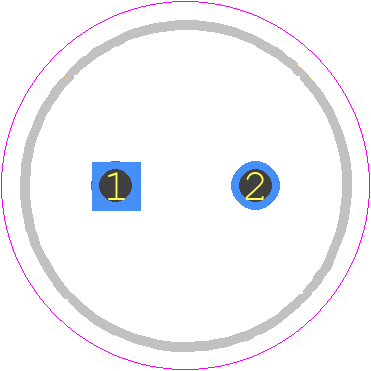

Use the download button to access the EKMG500ELL101MHB5D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EKMG5,
or try a keyword search, such as Aluminum Electrolytic Capacitors
