The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and the soldering iron should be applied to the terminal for 1 second or less to prevent damage to the capacitor.
Yes, the EKMG500ELL470MF11D is designed to withstand high vibrations and is suitable for use in applications with high mechanical stress. However, it's recommended to follow the manufacturer's guidelines for vibration testing and ensure proper mounting and fixation.
The ESR of the EKMG500ELL470MF11D is relatively low, which means it can handle high-frequency switching and reduce energy losses. A lower ESR also results in less heat generation, making the capacitor more reliable and efficient.
The EKMG500ELL470MF11D has a maximum operating temperature of 125°C (257°F), making it suitable for use in high-temperature applications. However, it's essential to ensure that the capacitor is not exposed to temperatures above its rated maximum operating temperature to prevent degradation or failure.
The EKMG500ELL470MF11D has a moisture resistance rating of 95% RH (relative humidity) at 40°C (104°F) for 56 days, making it suitable for use in humid or moist environments. However, it's recommended to follow the manufacturer's guidelines for moisture protection and ensure proper sealing and encapsulation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EKMG500ELL470MF11D Overview

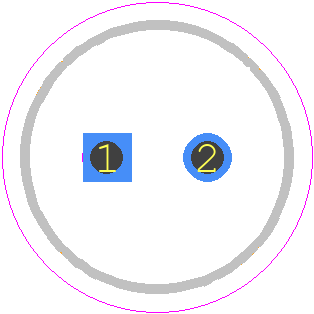

Use the download button to access the EKMG500ELL470MF11D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EKMG5,
or try a keyword search, such as Aluminum Electrolytic Capacitors
