The recommended soldering temperature is 250°C to 260°C, and the recommended soldering time is 3 to 5 seconds. However, it's always best to consult the manufacturer's soldering guidelines and follow industry-standard soldering practices.
The EKMG630ELL102ML25S is a radial lead type capacitor, which is suitable for general-purpose use. However, if you're planning to use it in a high-vibration environment, you may need to consider additional mechanical support or a capacitor with enhanced vibration resistance, such as a screw-terminal type capacitor.
The ESR of the EKMG630ELL102ML25S is not explicitly stated in the datasheet. However, according to Chemi-Con's general specifications for the EKMG series, the ESR is typically around 10-20 mohms at 100 kHz. For more accurate information, please contact Chemi-Con or consult their application notes.
The EKMG630ELL102ML25S has a rated operating temperature range of -40°C to 105°C. While it can operate at high temperatures, it's essential to consider the derating curves and ensure that the capacitor is not subjected to excessive temperatures, which can affect its reliability and lifespan.
The EKMG630ELL102ML25S is a general-purpose aluminum electrolytic capacitor, which may not be suitable for high-ripple current applications like DC-DC converters or switching power supplies. You may need to consider a capacitor specifically designed for high-ripple current applications, such as a capacitor with a high-ripple current rating or a film capacitor.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EKMG630ELL102ML25S Overview

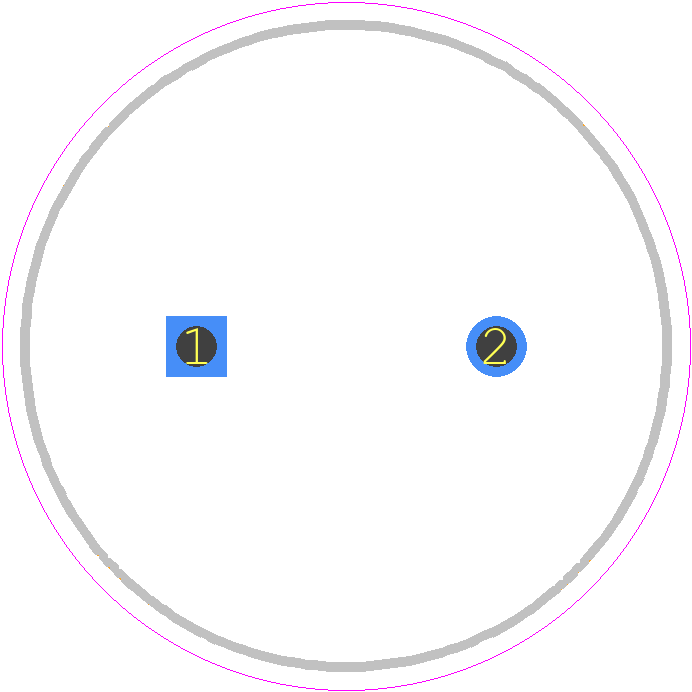

Use the download button to access the EKMG630ELL102ML25S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EKMG6,
or try a keyword search, such as Aluminum Electrolytic Capacitors
