EKMQ451VSN101MP30S - Chemi-Con

Description: Nippon Chemi-Con 100μF 450 V Aluminium Electrolytic Capacitor P30, KMQ Series 2000h 22 (Dia.) x 30mm

Download EKMQ451VSN101MP30S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

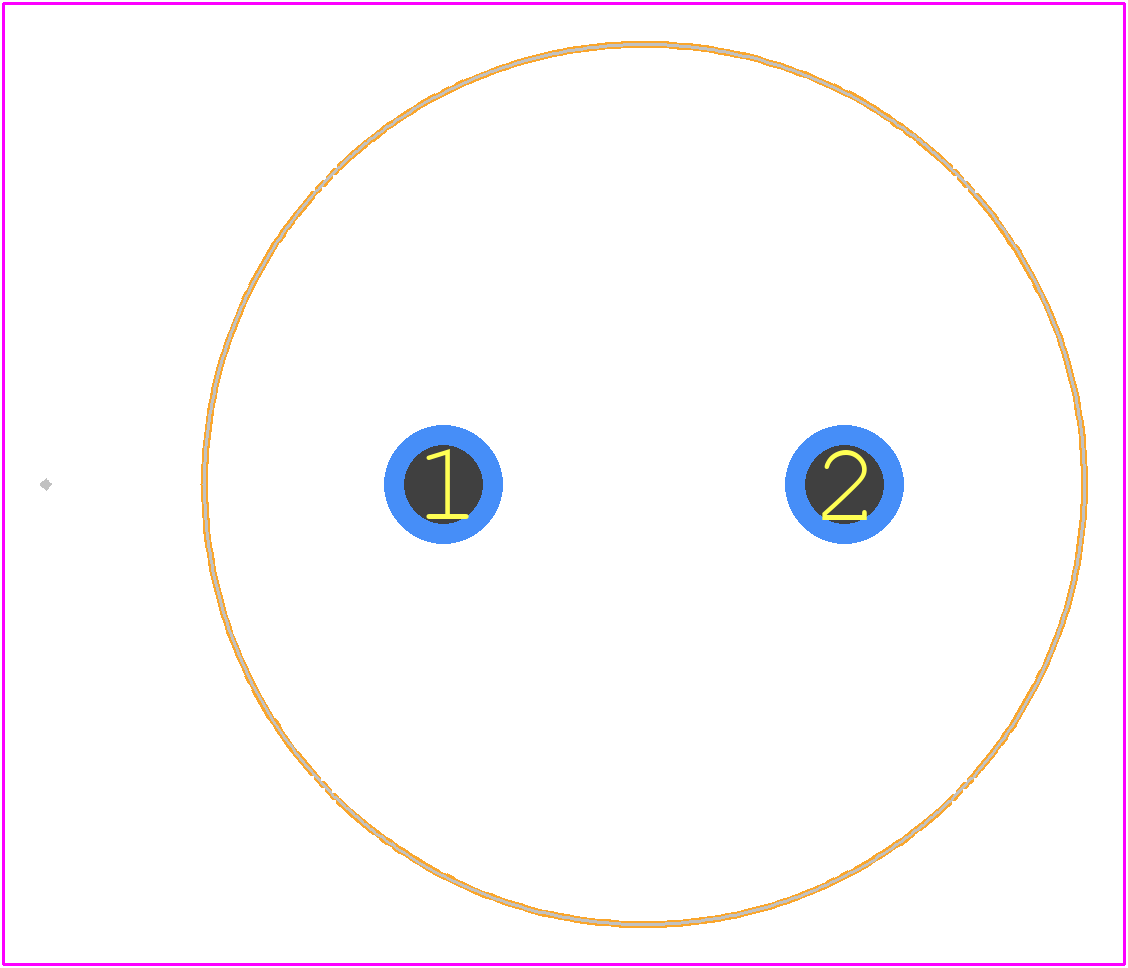

EKMQ451VSN101MP30S - Chemi-Con PCB footprint - Other - Other - EKMQ451VSN101MP30S-3
click to zoom
3D Models
EKMQ451VSN101MP30S - Chemi-Con  - 3D model - Other - EKMQ451VSN101MP30S-3
click to zoom

EKMQ451VSN101MP30S Details

  • Manufacturer Part Number:

    EKMQ451VSN101MP30S

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Chemi-Con

  • YTEOL:

    7.34

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.636396103 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    640 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    MATTE TIN

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN
