EKMR421VSN561MR50S - Chemi-Con

Description: Cap Aluminum Lytic 560uF 420V 20% (30 X 50mm) Snap-In 10mm 2070mA 2000h 105°C

Download EKMR421VSN561MR50S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EKMR421VSN561MR50S - Chemi-Con - PCB symbol
click to zoom
PCB Footprints

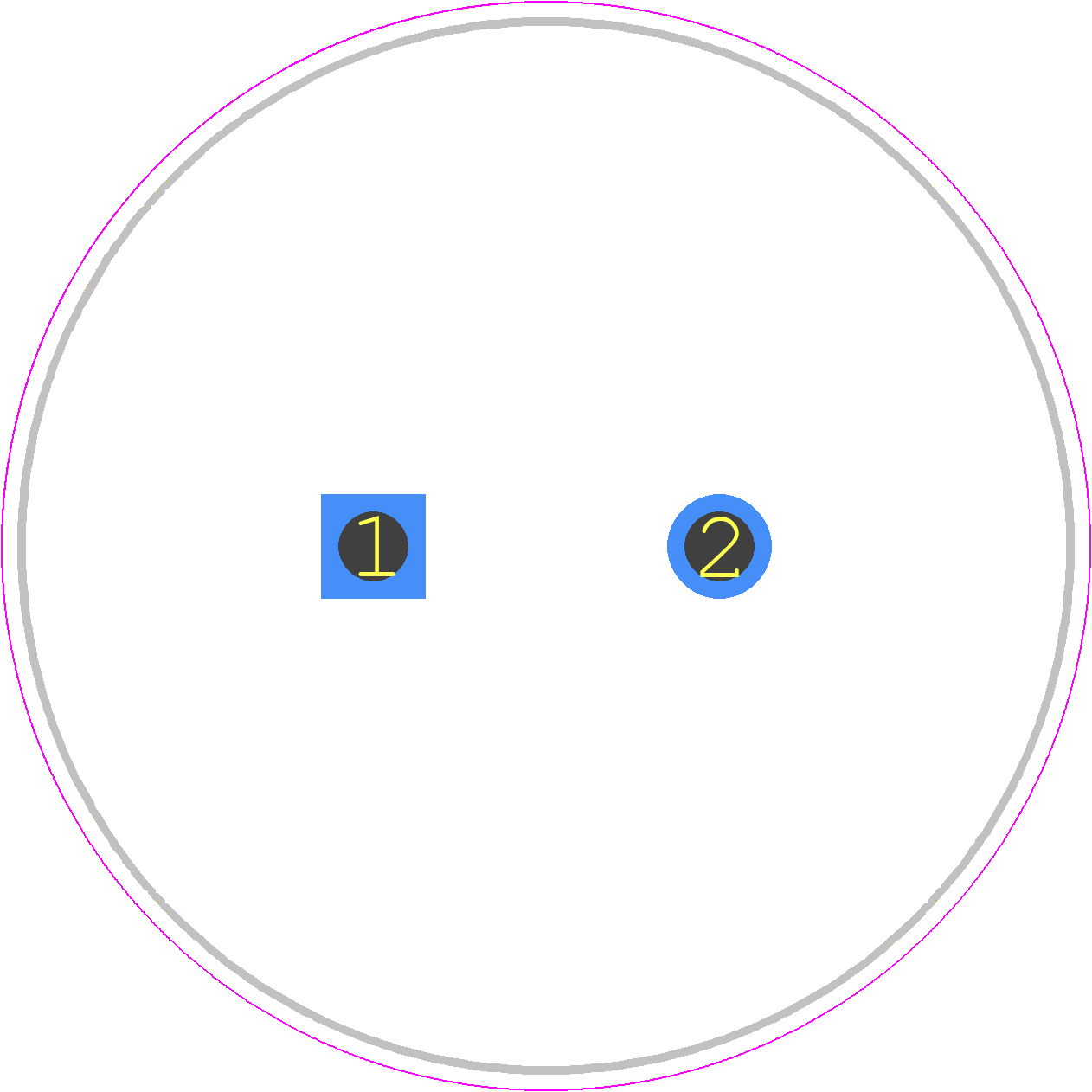

EKMR421VSN561MR50S - Chemi-Con PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 30*50
click to zoom
3D Models
EKMR421VSN561MR50S - Chemi-Con - 3D model - Capacitor, Polarized Radial Diameter - 30*50
click to zoom

EKMR421VSN561MR50S Details

  • Manufacturer Part Number:

    EKMR421VSN561MR50S

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Malaysia, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Chemi-Con

  • YTEOL:

    6

  • Capacitance:

    560 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.4549 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    420 V

  • Ripple Current:

    2070 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    TIN

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

EKMR421VSN561MR50S Frequently Asked Questions (FAQs)

  • Chemi-Con recommends derating the voltage rating by 10-20% to ensure reliable operation and extend the lifespan of the capacitor.
  • The EKMR421VSN561MR50S is designed for general-purpose use, but it may not be suitable for high-frequency applications above 100 kHz. For high-frequency use, consider Chemi-Con's high-frequency capacitor series, such as the EA series.
  • The maximum allowable ripple current for the EKMR421VSN561MR50S is not explicitly stated in the datasheet. However, as a general guideline, Chemi-Con recommends limiting the ripple current to 10-20% of the capacitor's rated current to ensure reliable operation.
  • The EKMR421VSN561MR50S has a rated operating temperature range of -40°C to 105°C. While it can operate in high-temperature environments, it's essential to consider the capacitor's derating curve and ensure that the operating temperature does not exceed the recommended maximum temperature.
  • The ESR of the EKMR421VSN561MR50S is not explicitly stated in the datasheet. However, as a general guideline, the ESR of Chemi-Con's aluminum electrolytic capacitors is typically in the range of 10-50 mohms. For specific ESR values, consult Chemi-Con's application notes or contact their technical support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EKMR421VSN561MR50S Overview

Use the download button to access the EKMR421VSN561MR50S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EKMR4, or try a keyword search, such as Aluminum Electrolytic Capacitors
