The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the soldering profile recommended by Chemi-Con to prevent damage to the capacitor.
Yes, the EKMR451VSN221MR25S is designed to withstand vibrations up to 10Hz to 200Hz, 1.5mm double amplitude, according to IEC 60068-2-6. However, it's recommended to consult with Chemi-Con or a qualified engineer to ensure the capacitor meets the specific vibration requirements of your application.
The EKMR451VSN221MR25S has a maximum operating temperature of 125°C (257°F). While it can operate at high temperatures, the capacitance and ESR may degrade over time. It's essential to consider the temperature derating factors specified in the datasheet to ensure reliable operation.
The EKMR451VSN221MR25S is a commercial-grade capacitor, but it may not meet the stringent requirements of high-reliability applications. Chemi-Con offers specialized capacitors for these industries, such as the EXR series, which meet the relevant standards and regulations.
Yes, the EKMR451VSN221MR25S is suitable for use in DC-DC converters and switching power supplies due to its low ESR and high ripple current rating. However, it's essential to ensure the capacitor meets the specific requirements of your design, including voltage, current, and frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EKMR451VSN221MR25S Overview

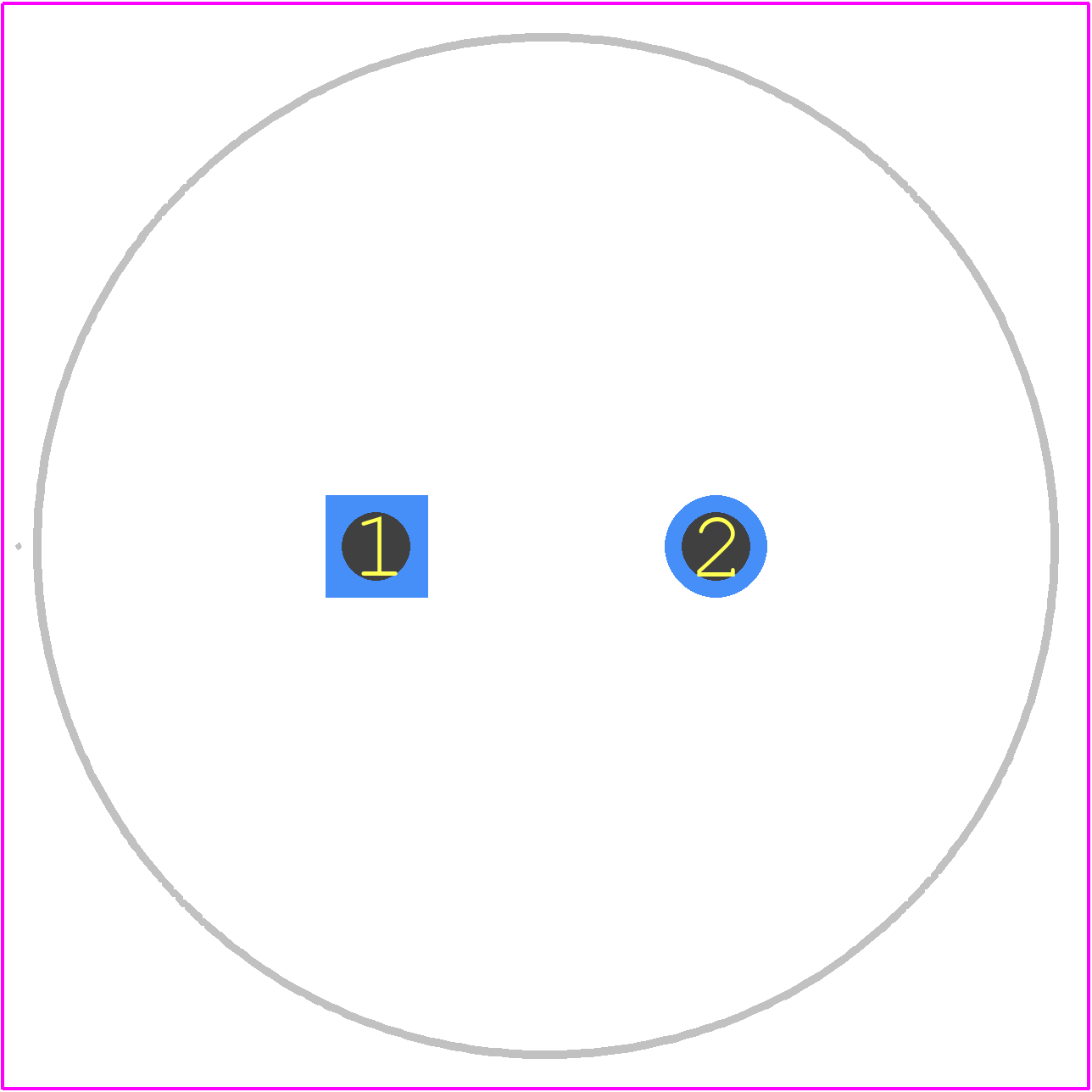

Use the download button to access the EKMR451VSN221MR25S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EKMR4,
or try a keyword search, such as Aluminum Electrolytic Capacitors
