EKMS401VSN181MQ25S - Chemi-Con

Description: Nippon Chemi-Con 180μF 400 V dc Aluminium Electrolytic Capacitor, KMS Series 3000h 25.4 (Dia.) x 25mm

Download EKMS401VSN181MQ25S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EKMS401VSN181MQ25S - Chemi-Con - PCB symbol
click to zoom
PCB Footprints

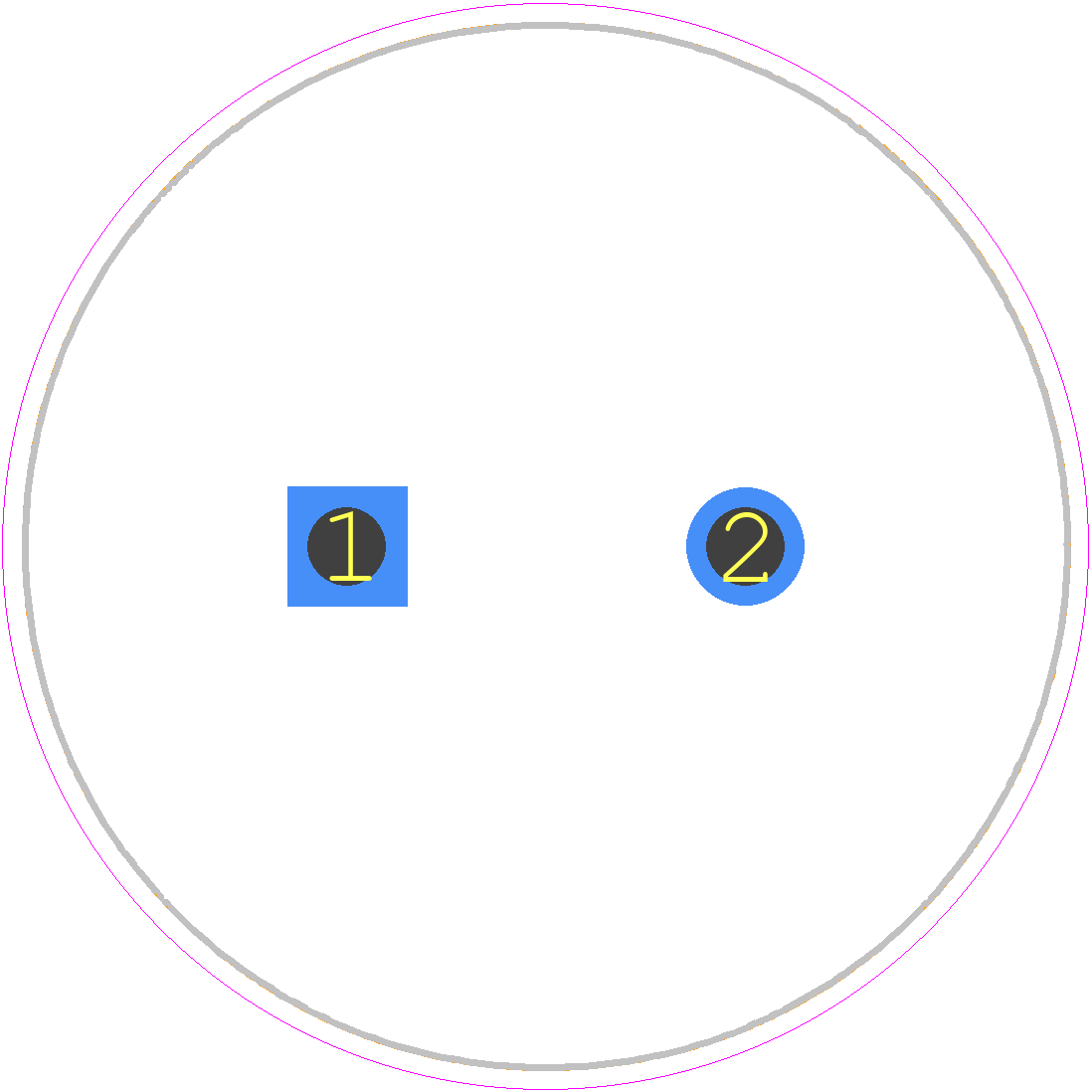

EKMS401VSN181MQ25S - Chemi-Con PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - KMS (26.4 x 25)
click to zoom
3D Models
EKMS401VSN181MQ25S - Chemi-Con - 3D model - Capacitor, Polarized Radial Diameter - KMS (26.4 x 25)
click to zoom

EKMS401VSN181MQ25S Details

  • Manufacturer Part Number:

    EKMS401VSN181MQ25S

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Chemi-Con

  • YTEOL:

    6

  • Capacitance:

    180 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25.4 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.805 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    990 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    TIN

  • Terminal Shape:

    SNAP-IN
