EKMZ451VSN331MR30S - Chemi-Con

Description: Aluminum Electrolytic Capacitors - Snap In 330uF 450V 20% 30X30

Download EKMZ451VSN331MR30S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EKMZ451VSN331MR30S - Chemi-Con - PCB symbol
click to zoom
PCB Footprints

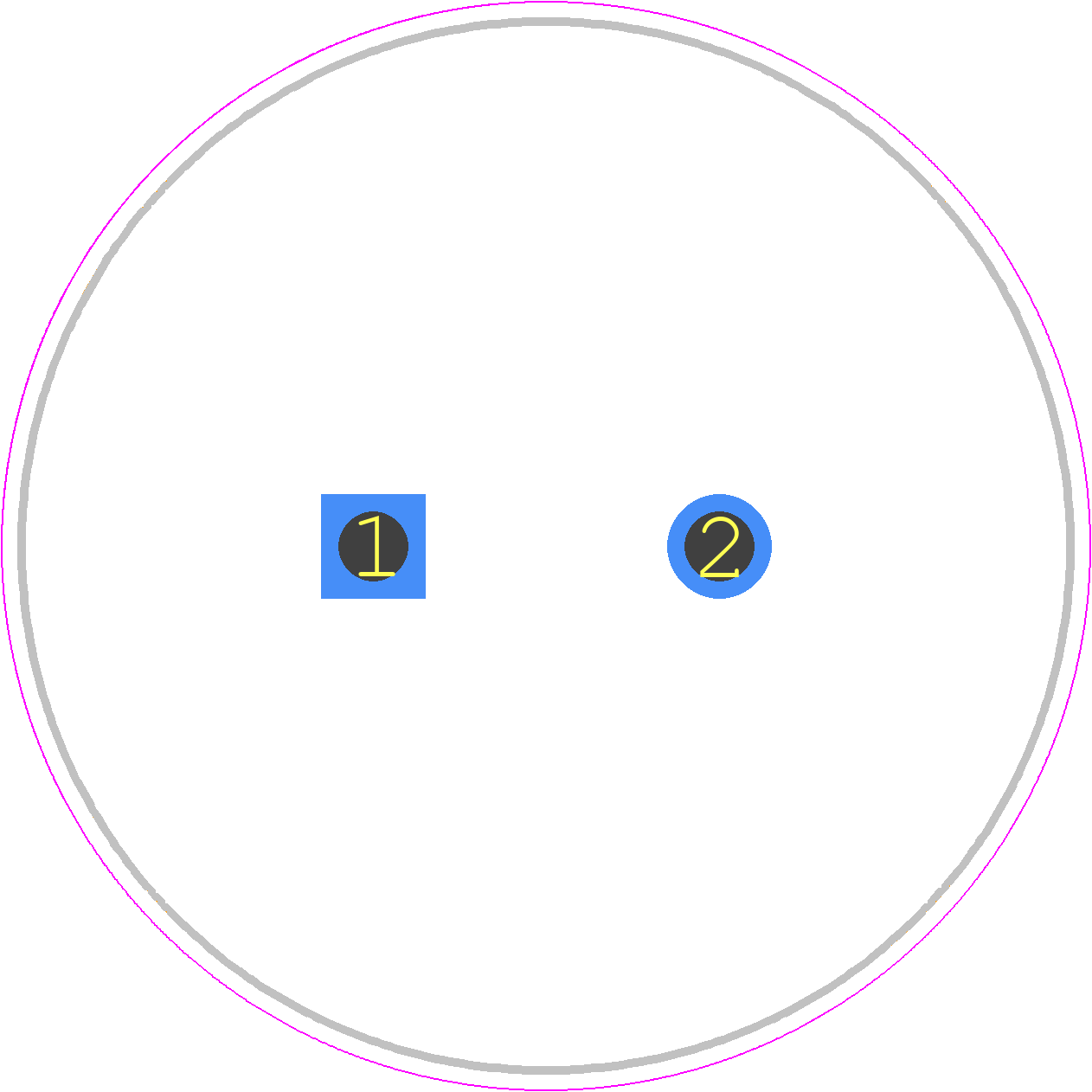

EKMZ451VSN331MR30S - Chemi-Con PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 30*30
click to zoom
3D Models
EKMZ451VSN331MR30S - Chemi-Con - 3D model - Capacitor, Polarized Radial Diameter - 30*30
click to zoom

EKMZ451VSN331MR30S Details

  • Manufacturer Part Number:

    EKMZ451VSN331MR30S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Chemi-Con

  • YTEOL:

    6

  • Capacitance:

    330 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.1561 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1430 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

EKMZ451VSN331MR30S Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, with a peak temperature of 270°C (520°F) for 1 second or less.
  • Yes, the EKMZ451VSN331MR30S capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The ESR of the EKMZ451VSN331MR30S capacitor is 30 mohms at 100 kHz, which is relatively low and suitable for high-frequency applications.
  • Yes, the EKMZ451VSN331MR30S capacitor is designed to withstand high vibrations and is suitable for use in applications such as automotive, industrial, and aerospace systems.
  • The shelf life of the EKMZ451VSN331MR30S capacitor is 2 years from the date of manufacture, as long as it is stored in a dry, cool place with minimal humidity.
