EKXJ161ELL101MK20S - Chemi-Con

Description: Aluminum Electrolytic Capacitors - Radial Leaded 100uF 160Volts

Download EKXJ161ELL101MK20S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EKXJ161ELL101MK20S - Chemi-Con - PCB symbol
click to zoom
PCB Footprints

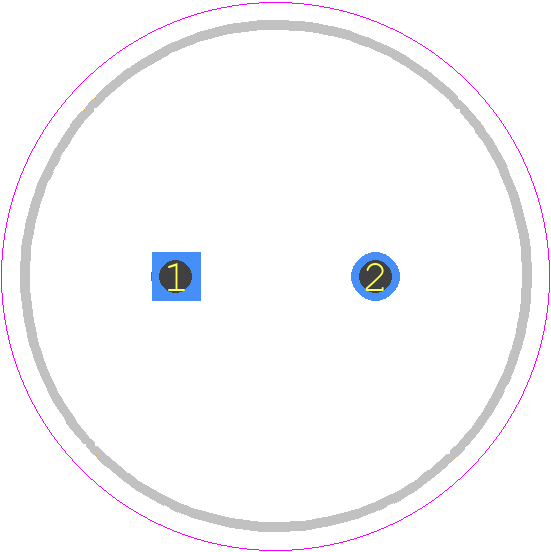

EKXJ161ELL101MK20S - Chemi-Con PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 12.5*20(12.5)
click to zoom
3D Models
EKXJ161ELL101MK20S - Chemi-Con - 3D model - Capacitor, Polarized Radial Diameter - 12.5*20(12.5)
click to zoom

EKXJ161ELL101MK20S Details

  • Manufacturer Part Number:

    EKXJ161ELL101MK20S

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Indonesia, Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Chemi-Con

  • YTEOL:

    7.42

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    12.5 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.74 mA

  • Length:

    20 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    160 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    575 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE
