The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the EKXJ251ELL820MK25S is designed to withstand vibrations up to 10Hz to 2000Hz, 10G acceleration. However, it's recommended to consult with Chemi-Con or a qualified engineer to ensure the capacitor meets the specific vibration requirements of your application.
The EKXJ251ELL820MK25S has a rated operating temperature range of -40°C to 125°C. While it can operate at high temperatures, the capacitance value and ESR may degrade over time. It's essential to consider the temperature derating factors specified in the datasheet to ensure reliable operation.
The EKXJ251ELL820MK25S is a general-purpose capacitor, but it's not specifically designed for high-reliability or safety-critical applications. If you require a capacitor for such applications, consider Chemi-Con's specialized product lines, such as their automotive or industrial-grade capacitors, which may offer enhanced reliability and performance.
Yes, the EKXJ251ELL820MK25S is suitable for use in DC-DC converters and switching power supplies due to its low ESR and high ripple current rating. However, ensure that the capacitor is properly sized and derated for the specific application to prevent overheating and premature failure.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EKXJ251ELL820MK25S Overview

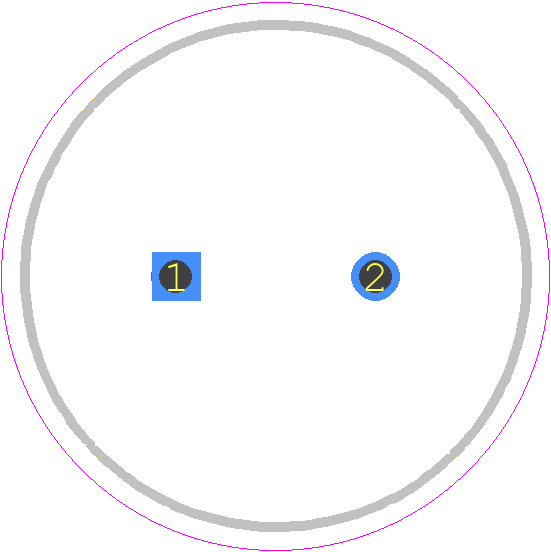

Use the download button to access the EKXJ251ELL820MK25S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EKXJ2,
or try a keyword search, such as Aluminum Electrolytic Capacitors
