The recommended PCB layout and land pattern can be found in Chemi-Con's application notes or by contacting their technical support. A general guideline is to follow the IPC-7351 standard for surface-mount components.
The EKY-101ELL221MK25S has a polarity marking on the capacitor body. Ensure that the positive leg is connected to the correct pin on the PCB, and the negative leg is connected to the other pin. Misaligning the polarity can lead to capacitor failure or damage.
The derating curve can be obtained from Chemi-Con's technical support or by consulting their application notes. As a general guideline, the capacitor's capacitance and ESR will decrease as the temperature increases, and the voltage rating may need to be derated accordingly.
The EKY-101ELL221MK25S is designed for general-purpose use, but it may not be suitable for high-vibration or high-shock environments. Chemi-Con offers specialized capacitors with enhanced vibration and shock resistance, such as their V-Series or S-Series. Consult with Chemi-Con's technical support to determine the best capacitor for your specific application.
Store the capacitors in a cool, dry place, away from direct sunlight and moisture. Avoid exposing them to mechanical stress, such as bending or flexing. Handle the capacitors by the body, not the leads, to prevent damage or deformation. Follow proper ESD precautions when handling the capacitors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EKY-101ELL221MK25S Overview

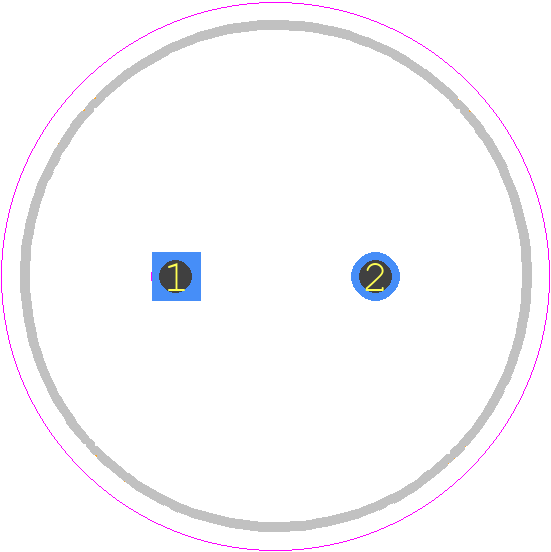

Use the download button to access the EKY-101ELL221MK25S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EKY-1,
or try a keyword search, such as Aluminum Electrolytic Capacitors
