EKY-160ELL471MJC5S - Chemi-Con

Description: Aluminum Electrolytic Capacitors - Radial Leaded 16volts 470uF 10X12.5

Download EKY-160ELL471MJC5S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EKY-160ELL471MJC5S - Chemi-Con - PCB symbol
click to zoom
PCB Footprints

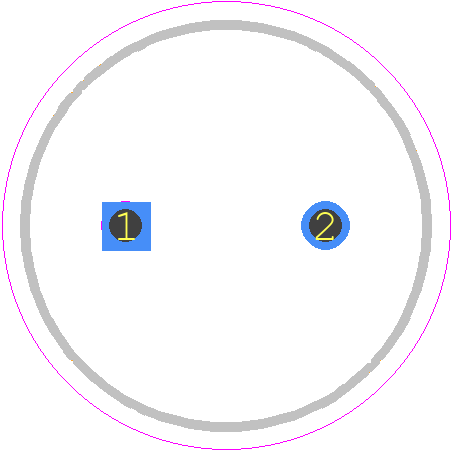

EKY-160ELL471MJC5S - Chemi-Con PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 10*12.5
click to zoom
3D Models
EKY-160ELL471MJC5S - Chemi-Con - 3D model - Capacitor, Polarized Radial Diameter - 10*12.5
click to zoom

EKY-160ELL471MJC5S Details

  • Manufacturer Part Number:

    EKY-160ELL471MJC5S

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Indonesia, Mainland China, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Chemi-Con

  • YTEOL:

    6

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    10 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0752 mA

  • Length:

    12.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    16 V

  • Ripple Current:

    432.5 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.16

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

EKY-160ELL471MJC5S Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, to prevent damage to the capacitor.
  • Yes, the EKY-160ELL471MJC5S is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude, according to IEC 60068-2-6.
  • The ESR of the EKY-160ELL471MJC5S is 0.15Ω, which is relatively low. This means it can handle high-frequency switching and reduce energy losses, making it suitable for high-performance applications.
  • Yes, the EKY-160ELL471MJC5S is compliant with RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations, making it suitable for use in environmentally friendly designs.
  • The EKY-160ELL471MJC5S has an MSL rating of 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking before soldering.
