EKY-500ELL102MM20S - Chemi-Con

Description: Aluminum Electrolytic Capacitors - Radial Leaded 50volts 1000uF 18X20

Download EKY-500ELL102MM20S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EKY-500ELL102MM20S - Chemi-Con - PCB symbol
click to zoom
PCB Footprints

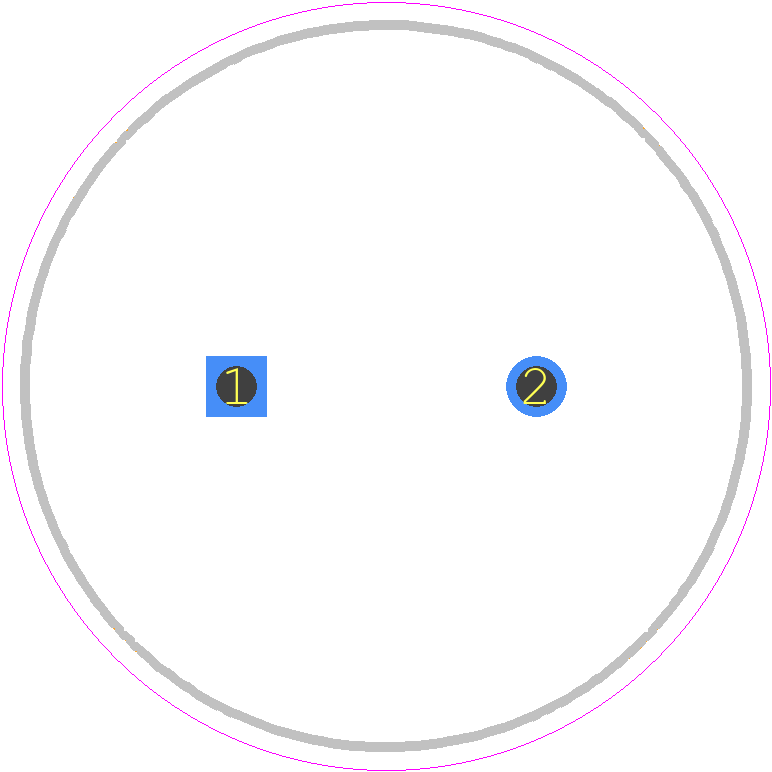

EKY-500ELL102MM20S - Chemi-Con PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 18*20
click to zoom
3D Models
EKY-500ELL102MM20S - Chemi-Con - 3D model - Capacitor, Polarized Radial Diameter - 18*20
click to zoom

EKY-500ELL102MM20S Details

  • Manufacturer Part Number:

    EKY-500ELL102MM20S

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Indonesia, Mainland China, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Chemi-Con

  • YTEOL:

    7

  • Capacitance:

    1000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    18 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.5 mA

  • Length:

    20 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    1494 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.10

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    7.5 mm

  • Terminal Shape:

    WIRE

EKY-500ELL102MM20S Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the EKY-500ELL102MM20S capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The ESR of the EKY-500ELL102MM20S capacitor is not explicitly stated in the datasheet, but it is typically around 10-20 mohms for electrolytic capacitors of this type and size.
  • The EKY-500ELL102MM20S capacitor is designed to withstand moderate vibration, but it may not be suitable for extremely high-vibration environments. It's recommended to consult with Chemi-Con or a qualified engineer to determine the capacitor's suitability for your specific application.
  • The shelf life of the EKY-500ELL102MM20S capacitor is typically 2-5 years from the date of manufacture, depending on storage conditions. It's recommended to follow proper storage and handling procedures to ensure the capacitor's performance and longevity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EKY-500ELL102MM20S Overview

Use the download button to access the EKY-500ELL102MM20S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EKY-5, or try a keyword search, such as Aluminum Electrolytic Capacitors
