The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the EKY-500ELL122MM25S is designed to withstand vibrations up to 10Hz to 200Hz, 1.5mm double amplitude, as per IEC 60068-2-6. However, it's recommended to consult with Chemi-Con or a qualified engineer to ensure the capacitor meets the specific vibration requirements of your application.
The EKY-500ELL122MM25S has a rated operating temperature range of -40°C to 125°C. While it can operate at high temperatures, the capacitor's lifespan and performance may degrade. It's essential to derate the capacitor's voltage and current ratings according to the temperature derating curve provided in the datasheet.
The EKY-500ELL122MM25S meets the requirements for Class X2 capacitors as per IEC 60384-14. However, it's crucial to consult with Chemi-Con and ensure that the capacitor meets the specific safety requirements of your application, including any necessary certifications and approvals.
The EKY-500ELL122MM25S has a moisture sensitivity level of 3, as per J-STD-020. While it can operate in humid environments, it's recommended to follow proper handling and storage procedures to prevent moisture absorption. Additionally, consider using a conformal coating or potting compound to protect the capacitor from moisture in harsh environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EKY-500ELL122MM25S Overview

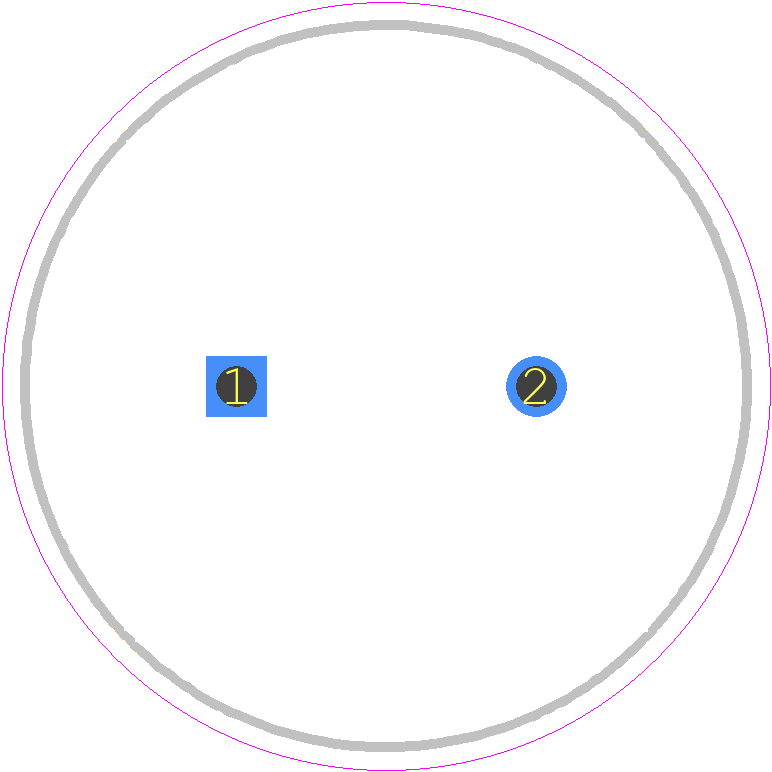

Use the download button to access the EKY-500ELL122MM25S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EKY-5,
or try a keyword search, such as Aluminum Electrolytic Capacitors
