EKY-500ELL560MF11D - Chemi-Con

Description: Aluminum Electrolytic Capacitors - Radial Leaded

Download EKY-500ELL560MF11D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EKY-500ELL560MF11D - Chemi-Con - PCB symbol
click to zoom
PCB Footprints

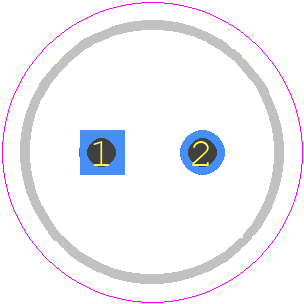

EKY-500ELL560MF11D - Chemi-Con PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 6.3*11
click to zoom
3D Models
EKY-500ELL560MF11D - Chemi-Con - 3D model - Capacitor, Polarized Radial Diameter - 6.3*11
click to zoom

EKY-500ELL560MF11D Details

  • Manufacturer Part Number:

    EKY-500ELL560MF11D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Indonesia, Mainland China, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Chemi-Con

  • YTEOL:

    0

  • Capacitance:

    56 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    6.3 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.028 mA

  • Length:

    11 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    118 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.10

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Pitch:

    2.5 mm

  • Terminal Shape:

    WIRE

EKY-500ELL560MF11D Frequently Asked Questions (FAQs)

  • Chemi-Con recommends a voltage derating of 10-20% to ensure reliable operation and extend the lifespan of the capacitor.
  • The EKY-500ELL560MF11D is designed to operate in temperatures up to 125°C, but its capacitance and ESR may degrade at high temperatures. Consult Chemi-Con's temperature derating charts for specific guidance.
  • Chemi-Con recommends using a secure mounting method, such as screw terminals or a clamp, to prevent vibration and ensure reliable connections.
  • The EKY-500ELL560MF11D is designed to withstand moderate vibration, but extreme vibration may affect its performance and lifespan. Consult Chemi-Con's vibration testing data for specific guidance.
  • The EKY-500ELL560MF11D is designed to handle surge currents and inrush currents, but it's essential to follow Chemi-Con's guidelines for surge current ratings and inrush current limitations to prevent damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EKY-500ELL560MF11D Overview

Use the download button to access the EKY-500ELL560MF11D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EKY-5, or try a keyword search, such as Aluminum Electrolytic Capacitors
