EKYB250ELL102MJ20S - Chemi-Con

Description: Aluminum Electrolytic Capacitors - Radial Leaded 25V 1000uF 20% Tol.

Download EKYB250ELL102MJ20S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EKYB250ELL102MJ20S - Chemi-Con - PCB symbol
click to zoom
PCB Footprints

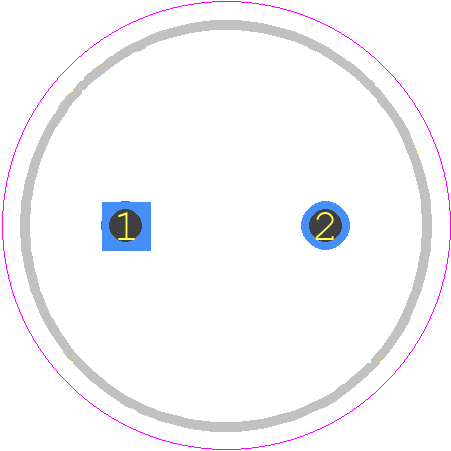

EKYB250ELL102MJ20S - Chemi-Con PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 10*20mm
click to zoom
3D Models
EKYB250ELL102MJ20S - Chemi-Con - 3D model - Capacitor, Polarized Radial Diameter - 10*20mm
click to zoom

EKYB250ELL102MJ20S Details

  • Manufacturer Part Number:

    EKYB250ELL102MJ20S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Indonesia, Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Chemi-Con

  • YTEOL:

    6

  • Capacitance:

    1000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    10 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.25 mA

  • Length:

    20 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Ripple Current:

    990 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.14

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

EKYB250ELL102MJ20S Frequently Asked Questions (FAQs)

  • A common practice is to derate the voltage by 10-30% to ensure reliable operation and extend the lifespan of the capacitor.
  • The EKYB250ELL102MJ20S is designed for general-purpose use, but it may not be suitable for high-frequency applications (e.g., >100 kHz). For high-frequency use, a more specialized capacitor with lower ESR and ESL may be required.
  • The datasheet may not provide explicit ripple current ratings. However, you can estimate the maximum allowable ripple current based on the capacitor's ESR, voltage rating, and temperature range. Consult with the manufacturer or a capacitor expert for guidance.
  • The EKYB250ELL102MJ20S capacitor has a maximum operating temperature of 105°C. If your application exceeds this limit, you may need to consider a high-temperature capacitor or take additional cooling measures.
  • Like all electrolytic capacitors, the EKYB250ELL102MJ20S may experience degradation over time due to factors like aging, temperature. The capacitor's performance may decrease, but it should still meet the specified requirements within its rated lifespan.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EKYB250ELL102MJ20S Overview

Use the download button to access the EKYB250ELL102MJ20S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EKYB2, or try a keyword search, such as Aluminum Electrolytic Capacitors
