EL0611(TA)-V - Everlight

Description: Logic Output Optoisolator 10Mbps Open Collector 3750Vrms 1 Channel 10kV/µs CMTI 8-SOP

Download EL0611(TA)-V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

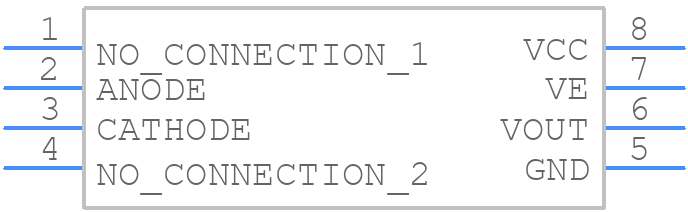

Symbol
EL0611(TA)-V - Everlight - PCB symbol
click to zoom
PCB Footprints
EL0611(TA)-V - Everlight PCB footprint - Other - Other - EL0611(TA)-V-2
click to zoom

EL0611(TA)-V Details

  • Manufacturer Part Number:

    EL0611(TA)-V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Everlight Electronics Co Ltd

  • YTEOL:

    8

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Response Time-Max:

    4e-8 s

  • Response Time-Nom:

    3e-8 ns

  • Surface Mount:

    YES

EL0611(TA)-V Frequently Asked Questions (FAQs)

  • The recommended storage temperature for EL0611(TA)-V is -20°C to 40°C, with a relative humidity of 60% or less.
  • While EL0611(TA)-V is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures.
  • The maximum allowable voltage for EL0611(TA)-V is 5V, with a recommended operating voltage of 3.3V to 5V.
  • For reflow soldering, it's recommended to follow the standard reflow profile, with a peak temperature of 260°C and a dwell time of 30 seconds. Ensure that the component is properly aligned and secured during the reflow process.
  • Yes, EL0611(TA)-V is compatible with lead-free soldering, with a recommended soldering temperature of 260°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EL0611(TA)-V Overview

Use the download button to access the EL0611(TA)-V schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like EL061, or try a keyword search, such as Optocoupler
