EL0630(TA)-V - Everlight

Description: High Speed Optocouplers High Speed SMD (10MBit/s)

Download EL0630(TA)-V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

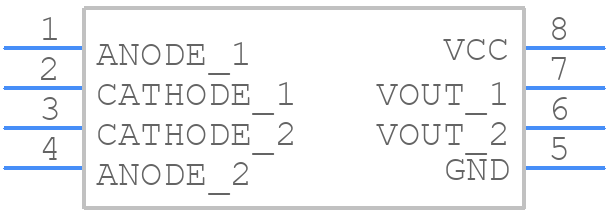

EL0630(TA)-V - Everlight - PCB symbol
click to zoom
PCB Footprints
EL0630(TA)-V - Everlight PCB footprint - Other - Other - EL0630(TA)-V-1
click to zoom

EL0630(TA)-V Details

  • Manufacturer Part Number:

    EL0630(TA)-V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Everlight Electronics Co Ltd

  • YTEOL:

    8

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • Number of Functions:

    2

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Response Time-Max:

    1e-7 s

  • Response Time-Nom:

    4e-8 ns

  • Surface Mount:

    YES

EL0630(TA)-V Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for EL0630(TA)-V is -40°C to 100°C.
  • Yes, the EL0630(TA)-V is compatible with lead-free soldering, with a peak reflow temperature of 260°C.
  • The MSL of the EL0630(TA)-V is 3, which means it can withstand up to 168 hours of exposure to 30°C/60% RH before soldering.
  • While the EL0630(TA)-V is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection against environmental factors such as UV, humidity, and temperature extremes.
  • The recommended operating temperature range for the EL0630(TA)-V is -40°C to 85°C.
