EL0631(TA)-V - Everlight

Description: High Speed Optocouplers High Speed SMD (10MBit/s)

Download EL0631(TA)-V Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this EL0631(TA)-V model

Email notifications will be applied after download.

Send part feedback

Symbol

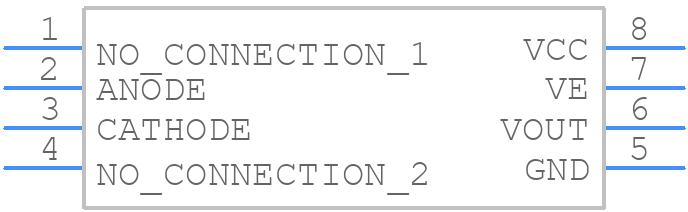

EL0631(TA)-V - Everlight - PCB symbol

PCB Footprints

EL0631(TA)-V - Everlight PCB footprint - Other - Other - EL0631(TA)-V-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for EL0631(TA)-V
Part Number EL0631(TA)-V
Manufacturer Everlight
Pin Count 8
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - EL0631(TA)-V-1
Released Date Oct 10, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

EL0631(TA)-V Details

Manufacturer Part Number:
EL0631(TA)-V
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8541.40.80.00
Factory Lead Time:
22 Weeks
Manufacturer:
Everlight Electronics Co Ltd
YTEOL:
8
Additional Feature:
UL APPROVED, VDE APPROVED
Configuration:
SEPARATE, 2 CHANNELS
Data Rate-Nom:
10 MBps
Forward Current-Max:
0.02 A
Isolation Voltage-Max:
3750 V
Mounting Feature:
SURFACE MOUNT
Number of Elements:
2
Number of Functions:
2
On-State Current-Max:
0.05 A
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
LOGIC IC OUTPUT OPTOCOUPLER
Packing Method:
TR
Response Time-Max:
1e-7 s
Response Time-Nom:
4e-8 ns
Surface Mount:
YES

EL0631(TA)-V Frequently Asked Questions (FAQs)

The recommended storage temperature range for EL0631(TA)-V is -40°C to 100°C.
Yes, the EL0631(TA)-V is compatible with lead-free soldering, with a peak reflow temperature of 260°C.
The MSL of EL0631(TA)-V is 3, which means it can withstand up to 168 hours of exposure to 30°C/60% RH before soldering.
Yes, the EL0631(TA)-V is suitable for outdoor applications, with a UV resistance rating of 5, which means it can withstand up to 1000 hours of UV exposure.
The recommended operating temperature range for EL0631(TA)-V is -40°C to 85°C.
