EL3023 - Everlight

Description: 6 PIN DIP RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

Download EL3023 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

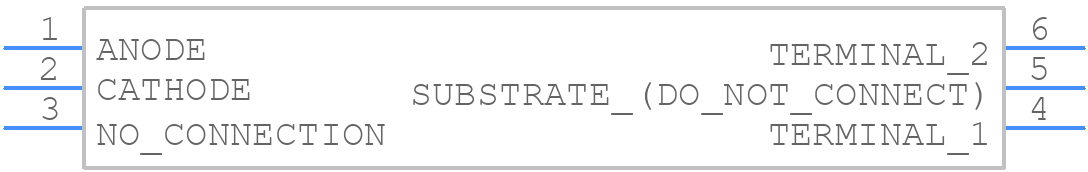

EL3023 - Everlight - PCB symbol
click to zoom
PCB Footprints
EL3023 - Everlight PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-6
click to zoom
3D Models
EL3023 - Everlight - 3D model - Dual-In-Line Packages - DIP-6
click to zoom

EL3023 Details

  • Manufacturer Part Number:

    EL3023

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, DIP-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Everlight Electronics Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.06 A

  • Input Trigger Current-Nom:

    5 mA

  • Isolation Voltage-Max:

    5000 V

  • Number of Elements:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER

  • Peak Off-state Voltage-Min:

    400 V

EL3023 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the EL3023 is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The maximum allowable voltage for the EL3023 is 80V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
  • The correct resistor value for the EL3023 depends on the specific application and the desired current transfer ratio. A general guideline is to choose a resistor value that limits the current to 10mA or less.
  • The EL3023 is not suitable for high-frequency applications above 1MHz due to its limited bandwidth. For high-frequency applications, consider using a different optocoupler with a higher bandwidth rating.
