A recommended PCB layout for optimal thermal performance would be to have a large copper area on the bottom layer of the PCB, connected to the thermal pad of the EL3053. This helps to dissipate heat efficiently. Additionally, it's recommended to have vias under the thermal pad to connect it to the copper area on the bottom layer.
To ensure proper soldering, use a soldering iron with a temperature range of 250°C to 260°C. Apply a small amount of solder paste to the pads, and use a reflow oven or a hot air gun to solder the component. Make sure to follow the recommended soldering profile and avoid overheating the component.
Although the datasheet specifies a maximum voltage of 5V, it's recommended to operate the EL3053 within a voltage range of 3.3V to 4.5V to ensure reliable operation and to prevent damage to the device.
To prevent damage, store the EL3053 in a dry, cool place away from direct sunlight. Avoid exposing the component to moisture, extreme temperatures, or mechanical stress. During shipping, use anti-static packaging materials and follow ESD handling procedures to prevent electrostatic discharge damage.
Although the datasheet specifies an operating temperature range of -40°C to 85°C, it's recommended to operate the EL3053 within a temperature range of 0°C to 70°C for optimal performance and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EL3053 Overview

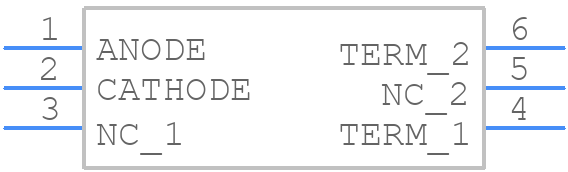

Use the download button to access the EL3053 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like EL305,
or try a keyword search, such as Optocoupler
