EL3063S(TA) - Everlight

Description: Optocoupler Triac AC-OUT 1-CH 600V 6-Pin PDIP SMD T/R

Download EL3063S(TA) Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this EL3063S(TA) model

Email notifications will be applied after download.

Send part feedback

Symbol

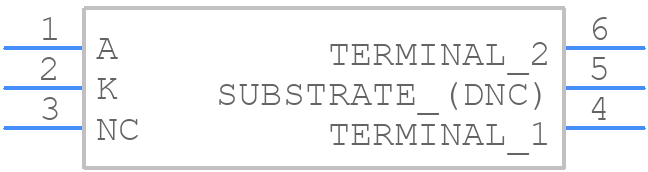

EL3063S(TA) - Everlight - PCB symbol

PCB Footprints

EL3063S(TA) - Everlight PCB footprint - Small Outline Packages - Small Outline Packages - Option S

3D Models

EL3063S(TA) - Everlight - 3D model - Small Outline Packages - Option S

Datasheet Download Datasheet
Stock & Prices Price & Stock for EL3063S(TA)
Part Number EL3063S(TA)
Manufacturer Everlight
Pin Count 6
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - Option S
Released Date Mar 22, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

EL3063S(TA) Details

Manufacturer Part Number:
EL3063S(TA)
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, SURFACE MOUNT PACKAGE-6
ECCN Code:
EAR99
HTS Code:
8541.40.80.00
Factory Lead Time:
22 Weeks
Manufacturer:
Everlight Electronics Co Ltd
YTEOL:
8
Additional Feature:
UL RECOGNIZED
Configuration:
SINGLE
Forward Current-Max:
0.06 A
Input Trigger Current-Nom:
5 mA
Isolation Voltage-Max:
5000 V
Number of Elements:
1
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-55 °C
Optoelectronic Device Type:
TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR
Peak Off-state Voltage-Min:
600 V

EL3063S(TA) Frequently Asked Questions (FAQs)

The recommended storage temperature range for EL3063S(TA) is -40°C to 100°C.
Yes, EL3063S(TA) is compatible with lead-free soldering, with a peak reflow temperature of 260°C.
The MSL of EL3063S(TA) is 3, which means it can withstand a maximum exposure of 168 hours at 30°C and 60% relative humidity.
Yes, EL3063S(TA) is AEC-Q101 qualified, making it suitable for use in automotive applications.
The typical forward voltage drop of EL3063S(TA) is 1.8V at a forward current of 1A.

Trust Checks

Expert Contribution

System Verified

Community Approved

EL3063S(TA) Overview

Use the download button to access the EL3063S(TA) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like EL306, or try a keyword search, such as Optocoupler
