EL5135IW-T7A - Renesas Electronics

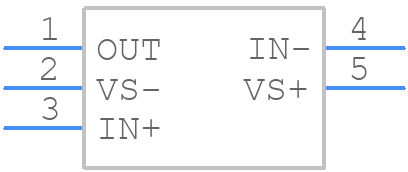

EL5135IW-T7A Details

• Manufacturer Part Number:

  EL5135IW-T7A

• Part Life Cycle Code:

  Obsolete

• Package Description:

  SOT-23, 5 PIN

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Date Of Intro:

  2017-10-03

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  5.5 µA

• Bias Current-Max (IIB) @25C:

  5.5 µA

• Common-mode Reject Ratio-Min:

  80 dB

• Common-mode Reject Ratio-Nom:

  108 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  1000 µV

• JESD-30 Code:

  R-PDSO-G5

• Length:

  2.9 mm

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  NO

• Neg Supply Voltage Limit-Max:

  -6.6 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Number of Functions:

  1

• Number of Terminals:

  5

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LSSOP

• Package Equivalence Code:

  TSOP5/6,.11,37

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

• Packing Method:

  TR, 7 INCH

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  1.45 mm

• Slew Rate-Min:

  350 V/us

• Slew Rate-Nom:

  475 V/us

• Supply Current-Max:

  7.8 mA

• Supply Voltage Limit-Max:

  6.6 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.95 mm

• Terminal Position:

  DUAL

• Unity Gain BW-Nom:

  1500000

• Voltage Gain-Min:

  4000

• Wideband:

  YES

• Width:

  1.6 mm
