EL5164ISZ - Renesas Electronics

Description: The EL5164, EL5165, and EL5364 are current feedback amplifiers with a very high bandwidth of 600MHz. This makes these amplifiers ideal for today’s High-Speed video and monitor applications. With a supply current of just 3. 5mA per amplifier and the ability to run from a single supply voltage from 5V to 12V, these amplifiers are also ideal for handheld, portable or battery-powered equipment. The EL5164 and EL5364 also incorporate an enable and disable function to reduce the supply current to 14µA typical per

Download EL5164ISZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

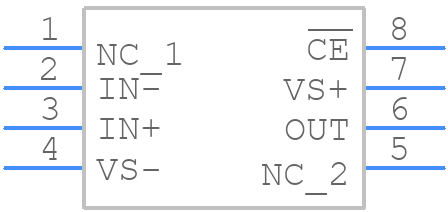

EL5164ISZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
EL5164ISZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8. 15E
click to zoom
3D Models
EL5164ISZ - Renesas Electronics - 3D model - Small Outline Packages - M8. 15E
click to zoom

EL5164ISZ Details

  • Manufacturer Part Number:

    EL5164ISZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15E

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CURRENT-FEEDBACK

  • Common-mode Reject Ratio-Min:

    50 dB

  • Common-mode Reject Ratio-Nom:

    62 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -6.6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    3500 V/us

  • Slew Rate-Nom:

    4700 V/us

  • Supply Current-Max:

    4.2 mA

  • Supply Voltage Limit-Max:

    6.6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    YES

  • Width:

    3.9 mm

EL5164ISZ Frequently Asked Questions (FAQs)

  • Renesas recommends following a star-grounding topology, keeping the analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from each other to reduce crosstalk.
  • Ensure proper heat sinking, use a thermal pad or thermal interface material, and keep the device away from heat sources. Also, follow the recommended PCB layout and thermal design guidelines provided in the datasheet.
  • The recommended input impedance is 1 kΩ or higher. A lower input impedance can cause signal attenuation, distortion, and increased noise. Ensure the input signal is properly terminated and matched to the EL5164ISZ's input impedance for optimal performance.
  • Use an oscilloscope to monitor the input and output signals, and check for proper power supply decoupling and bypassing. Verify the PCB layout and routing meet the recommended guidelines. Consult the datasheet and application notes for troubleshooting tips and guidelines.
  • Yes, the EL5164ISZ is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is PPAP (Production Part Approval Process) capable. Consult the datasheet and Renesas' website for specific qualification and certification details.
