Description:The EL5174 and EL5374 are single and triple high bandwidth amplifiers with an output in differential form. They are primarily targeted for applications such as driving twisted-pair lines in component video applications. The inputs can be in either single-ended or differential form but the outputs are always in differential form. On the EL5174 and EL5374, two feedback inputs provide the user with the ability to set the gain of each device (stable at minimum gain of one). For a fixed gain of two, please see t
A good PCB layout for the EL5174ISZ should minimize noise and parasitic inductance. Place the device close to the load, use short traces, and avoid routing signals under the device. Use a solid ground plane and decouple the power supply with a 10uF capacitor.
To ensure stability, make sure to follow the recommended compensation network values and layout guidelines. Also, ensure that the output capacitor is properly sized and has a low ESR. Additionally, avoid over-compensating the device, as this can lead to oscillation.
The EL5174ISZ can drive a maximum capacitive load of 10nF. Exceeding this value may cause the device to oscillate or become unstable. If a larger capacitive load is required, consider adding a series resistor to dampen the load.
To protect the EL5174ISZ from overvoltage, use a voltage clamp or a zener diode to limit the input voltage to the recommended maximum value. For overcurrent protection, use a current sense resistor and a comparator to detect excessive current and shut down the device if necessary.
The thermal derating curve for the EL5174ISZ is typically provided in the datasheet or in a separate application note. It shows the maximum power dissipation vs. temperature, allowing designers to determine the maximum operating temperature and power dissipation for their specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EL5174ISZ Overview

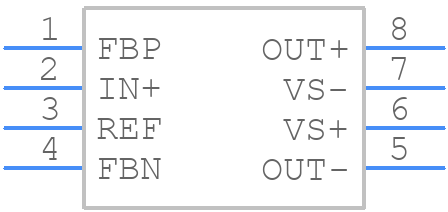

Use the download button to access the EL5174ISZ schematic symbol, PCB footprint, and 3D model.
