EL5220CYZ - Renesas Electronics

Description: The EL5120, EL5220, and EL5420 are low power, high voltage, rail-to-rail input-output amplifiers. The EL5120 contains a single amplifier, the EL5220 contains two amplifiers, and the EL5420 contains four amplifiers. Operating on supplies ranging from 5V to 15V, while consuming only 500µA per amplifier, the EL5120, EL5220, and EL5420 have a bandwidth of 12MHz (-3dB). They also provide common mode input ability beyond the supply rails, as well as rail-to-rail output capability. This enables these amplifiers to

Download EL5220CYZ Model

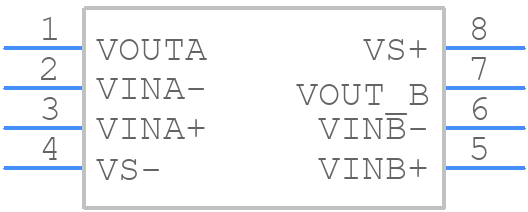

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EL5220CYZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - MDP0043
click to zoom
3D Models
EL5220CYZ - Renesas Electronics  - 3D model - Small Outline Packages - MDP0043
click to zoom

EL5220CYZ Details

  • Manufacturer Part Number:

    EL5220CYZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.118A

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-10-03

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.05 µA

  • Bias Current-Max (IIB) @25C:

    0.05 µA

  • Common-mode Reject Ratio-Min:

    50 dB

  • Common-mode Reject Ratio-Nom:

    70 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    12000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage Limit-Max:

    -9 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    10 V/us

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage Limit-Max:

    9 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    8000

  • Voltage Gain-Min:

    5623.413251

  • Wideband:

    NO

  • Width:

    3 mm

EL5220CYZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APL-AN-EL5220-001) which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
  • Renesas recommends following the guidelines in their EMC application note (APL-AN-EL5220-002) which includes PCB layout considerations, component selection, and shielding techniques to minimize electromagnetic interference.
  • According to Renesas, the maximum allowed voltage on the VCC pin during power-up and power-down sequences is 6.5V to prevent damage to the device. It's essential to ensure a controlled power-up and power-down sequence to avoid exceeding this voltage limit.
  • Renesas recommends using an external power-on reset circuit to ensure a clean power-up sequence. For brown-out detection, the EL5220CYZ has an internal BOD circuit that can be enabled or disabled through the BODEN pin. It's essential to understand the POR and BOD timing diagrams to ensure proper system operation.
  • Renesas recommends using 0.1uF to 1uF decoupling capacitors with a voltage rating of 10V or higher, placed as close as possible to the VCC and GND pins. This helps to reduce noise and ensure stable operation.
