EL5362IUZ - Renesas Electronics

Description: The EL5162, EL5163, EL5262, EL5263 and EL5362 are current feedback amplifiers with a bandwidth of 500MHz. This makes these amplifiers ideal for today’s High-Speed video and monitor applications. With a supply current of just 1. 5mA per amplifier and the ability to run from a single supply voltage from 5V to 12V, these amplifiers are also ideal for handheld, portable or battery-powered equipment. The EL5162, EL5262 and EL5362 also incorporate an enable and disable function to reduce the supply current to 14µ

Download EL5362IUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

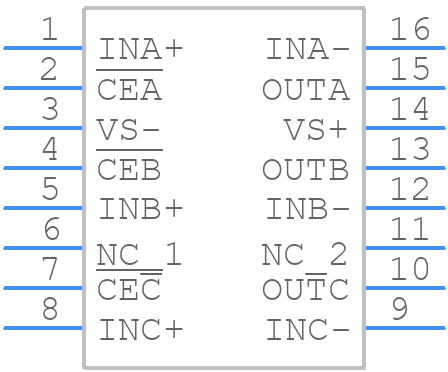

EL5362IUZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
EL5362IUZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - MDP0040
click to zoom
3D Models
EL5362IUZ - Renesas Electronics - 3D model - Small Outline Packages - MDP0040
click to zoom

EL5362IUZ Details

  • Manufacturer Part Number:

    EL5362IUZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QSOP

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    MDP0040

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2017-10-03

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CURRENT-FEEDBACK

  • Common-mode Reject Ratio-Min:

    50 dB

  • Common-mode Reject Ratio-Nom:

    62 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9022 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -6.6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.7272 mm

  • Slew Rate-Min:

    2000 V/us

  • Slew Rate-Nom:

    2500 V/us

  • Supply Current-Max:

    6 mA

  • Supply Voltage Limit-Max:

    6.6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    1000000

  • Wideband:

    YES

  • Width:

    3.9116 mm

EL5362IUZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the EL5362IUZ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure proper powering and decoupling of the EL5362IUZ, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins, and consider adding a ferrite bead or a power inductor in series with the power supply to filter out high-frequency noise.
  • The EL5362IUZ has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot common issues with the EL5362IUZ, start by checking the PCB layout and ensuring that the device is properly powered and decoupled. Verify that the input and output signals are within the recommended voltage ranges and that the device is not overheating. Use an oscilloscope to analyze the output signal and identify any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
  • Yes, the EL5362IUZ is a high-frequency device and requires careful consideration of EMI/EMC. Use a shielded enclosure, keep the device away from other high-frequency components, and ensure that the PCB layout is designed to minimize radiation. Additionally, consider adding EMI filters or shielding to the input and output signals to reduce emissions and improve immunity.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EL5362IUZ Overview

Use the download button to access the EL5362IUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EL536, or try a keyword search, such as Operational Amplifiers
