EL5420CSZ - Renesas Electronics

Description: The EL5120, EL5220, and EL5420 are low power, high voltage, rail-to-rail input-output amplifiers. The EL5120 contains a single amplifier, the EL5220 contains two amplifiers, and the EL5420 contains four amplifiers. Operating on supplies ranging from 5V to 15V, while consuming only 500µA per amplifier, the EL5120, EL5220, and EL5420 have a bandwidth of 12MHz (-3dB). They also provide common mode input ability beyond the supply rails, as well as rail-to-rail output capability. This enables these amplifiers to

Download EL5420CSZ Model
Schematic

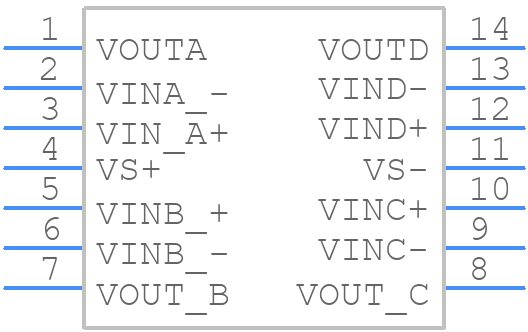

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EL5420CSZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 14-Pin SO ()-
click to zoom
3D Models
EL5420CSZ - Renesas Electronics  - 3D model - Small Outline Packages - 14-Pin SO ()-
click to zoom

EL5420CSZ Details

  • Manufacturer Part Number:

    EL5420CSZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    MDP0027

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-10-03

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.05 µA

  • Bias Current-Max (IIB) @25C:

    0.05 µA

  • Common-mode Reject Ratio-Min:

    50 dB

  • Common-mode Reject Ratio-Nom:

    70 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    12000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.6614 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -9 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.727 mm

  • Slew Rate-Nom:

    10 V/us

  • Supply Current-Max:

    3 mA

  • Supply Voltage Limit-Max:

    9 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    8000

  • Voltage Gain-Min:

    5623.413251

  • Wideband:

    NO

  • Width:

    3.81 mm
