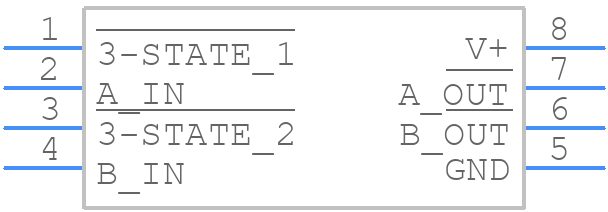

EL7232CNZ - Renesas Electronics

EL7232CNZ Details

• Manufacturer Part Number:

  EL7232CNZ

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  PDIP

• Package Description:

  DIP-8

• Pin Count:

  8

• Manufacturer Package Code:

  E8.3

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  4 Weeks

• Date Of Intro:

  2017-10-16

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Differential Output:

  NO

• Driver Number of Bits:

  2

• High Level Input Current-Max:

  0.00001 A

• Input Characteristics:

  STANDARD

• Interface IC Type:

  LINE DRIVER

• Interface Standard:

  GENERAL PURPOSE

• JESD-30 Code:

  R-PDIP-T8

• JESD-609 Code:

  e3

• Length:

  9.585 mm

• Number of Functions:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Seated Height-Max:

  5.33 mm

• Supply Current-Max:

  2.5 mA

• Supply Voltage-Max:

  16 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  15 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Transmit Delay-Max:

  25 ns

• Width:

  7.62 mm
