Description:The EL7457 is a High-Speed, non-inverting, quad CMOS driver. It is capable of running at clock rates up to 40MHz and features 2A peak drive capability and a nominal on-resistance of just 3Ω. The EL7457 is ideal for driving highly capacitive loads, such as storage and vertical clocks in CCD applications. It is also well suited to ATE pin driving, level-shifting, and clock-driving applications. The EL7457 is capable of running from single or dual power supplies while using ground referenced inputs. Each outpu
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
Renesas recommends following the IEC 61967 standard for EMC compliance, and provides guidelines for PCB design, component selection, and shielding in their application notes and design guides.
While the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends derating the device for reliable operation above 85°C, and provides thermal derating curves in their application notes.
Renesas provides a troubleshooting guide in their application notes, which includes steps for debugging, fault detection, and error handling, as well as recommendations for using oscilloscopes and logic analyzers to diagnose issues.
Renesas recommends following the JEDEC J-STD-020 standard for soldering and assembly, and provides guidelines for reflow soldering, wave soldering, and hand soldering in their application notes and packaging documents.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EL7457CLZ-T7A Overview

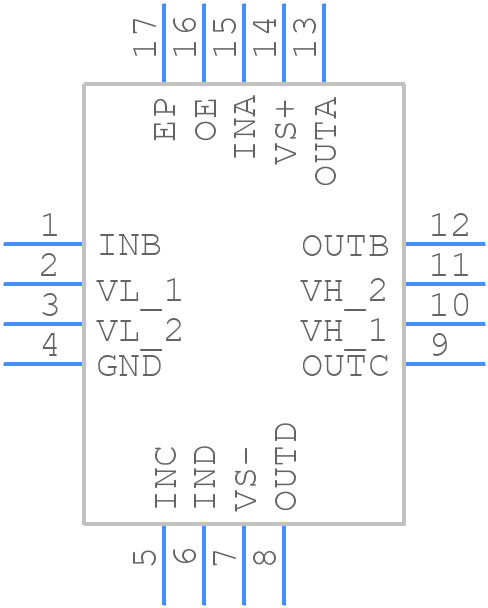

Use the download button to access the EL7457CLZ-T7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EL745,
or try a keyword search, such as MOSFET Drivers
