EL814S1(A)(TA)-V - Everlight

Description: 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER AC INPUT PHOTOCOUPLER

Download EL814S1(A)(TA)-V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

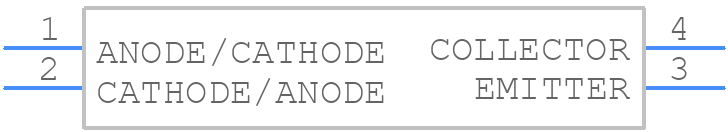

Symbol
EL814S1(A)(TA)-V - Everlight - PCB symbol
click to zoom

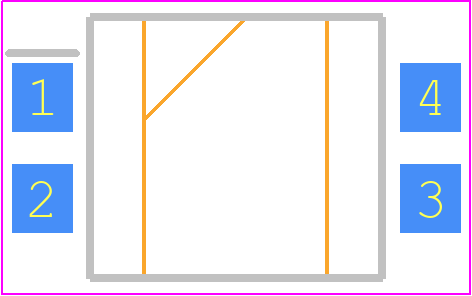

PCB Footprints
EL814S1(A)(TA)-V - Everlight PCB footprint - Small Outline Packages - Small Outline Packages - EL814S1(A)(TA)-
click to zoom
3D Models
EL814S1(A)(TA)-V - Everlight - 3D model - Small Outline Packages - EL814S1(A)(TA)-
click to zoom

EL814S1(A)(TA)-V Details

  • Manufacturer Part Number:

    EL814S1(A)(TA)-V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-4

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Everlight Electronics Co Ltd

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    80 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    50%

  • Current Transfer Ratio-Nom:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.4 V

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000018 s

  • Surface Mount:

    YES

EL814S1(A)(TA)-V Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the EL814S1(A)(TA)-V is -40°C to 100°C.
  • Yes, the EL814S1(A)(TA)-V is suitable for high-speed applications, with a rise time of 10 ns and a fall time of 15 ns.
  • The isolation voltage of the EL814S1(A)(TA)-V is 5 kVrms.
  • Yes, the EL814S1(A)(TA)-V can be used in switching power supplies due to its high isolation voltage and fast switching times.
  • Yes, the EL814S1(A)(TA)-V is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EL814S1(A)(TA)-V Overview

Use the download button to access the EL814S1(A)(TA)-V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EL814, or try a keyword search, such as Optocoupler
