EL816S1(J)(TU)-V - Everlight

Description: Transistor Output Optocouplers Optocoupler

Download EL816S1(J)(TU)-V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

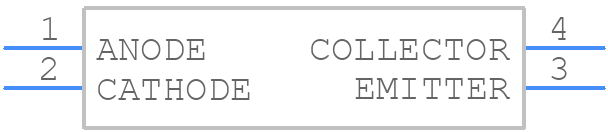

EL816S1(J)(TU)-V - Everlight - PCB symbol
click to zoom
PCB Footprints

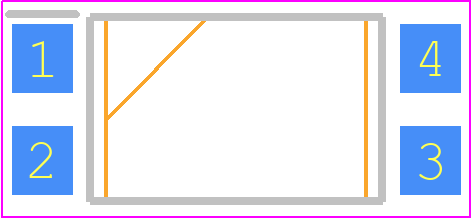

EL816S1(J)(TU)-V - Everlight PCB footprint - Small Outline Packages - Small Outline Packages - EL816S1(J)(TU)-V
click to zoom
3D Models
EL816S1(J)(TU)-V - Everlight - 3D model - Small Outline Packages - EL816S1(J)(TU)-V
click to zoom

EL816S1(J)(TU)-V Details

  • Manufacturer Part Number:

    EL816S1(J)(TU)-V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, COMPACT, SMD, 4 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Everlight Electronics Co Ltd

  • YTEOL:

    7.5

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    80 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Nom:

    100%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Isolation Voltage-Max:

    5000 V

  • Number of Elements:

    1

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

EL816S1(J)(TU)-V Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the EL816S1(J)(TU)-V is -40°C to 100°C.
  • Yes, the EL816S1(J)(TU)-V is suitable for high-speed applications, with a rise time of 10 ns and a fall time of 15 ns.
  • The typical current transfer ratio (CTR) of the EL816S1(J)(TU)-V is 100% to 200%.
  • Yes, the EL816S1(J)(TU)-V is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The maximum isolation voltage of the EL816S1(J)(TU)-V is 5000 Vrms.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EL816S1(J)(TU)-V Overview

Use the download button to access the EL816S1(J)(TU)-V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EL816, or try a keyword search, such as Optocoupler
