EL8178FSZ footprint, schematic symbol and 3D model by Renesas Electronics

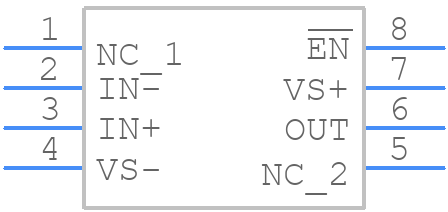

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EL8178FSZ
Part Number EL8178FSZ
Manufacturer Renesas Electronics
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 8 Ld SOIC (150 mi)-1
Released Date Apr 6, 2021
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

EL8178FSZ Details

Manufacturer Part Number:
EL8178FSZ
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
SOP-8
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Factory Lead Time:
4 Weeks
Date Of Intro:
2017-10-19
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB):
0.0006 µA
Bias Current-Max (IIB) @25C:
0.000025 µA
Common-mode Reject Ratio-Min:
75 dB
Common-mode Reject Ratio-Nom:
100 dB
Frequency Compensation:
YES
Input Offset Voltage-Max:
450 µV
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Low-Bias:
YES
Low-Offset:
NO
Micropower:
YES
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUT LINE
Power:
NO
Programmable Power:
NO
Seated Height-Max:
1.75 mm
Slew Rate-Min:
0.07 V/us
Slew Rate-Nom:
0.15 V/us
Supply Current-Max:
0.085 mA
Supply Voltage Limit-Max:
5.75 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Unity Gain BW-Nom:
266
Voltage Gain-Min:
100000
Wideband:
NO
Width:
3.9 mm

EL8178FSZ Frequently Asked Questions (FAQs)

Renesas provides a recommended PCB layout in the application note 'EL8178FSZ PCB Layout Guide' (document number R01AN4393EU0100). It's essential to follow this guide to ensure optimal performance, especially for high-frequency signals.
The EL8178FSZ has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Refer to the thermal management section in the datasheet for more information.
The recommended input capacitance for the EL8178FSZ is 10nF to 100nF. However, the optimal value depends on the specific application and operating frequency. It's recommended to experiment with different values to find the best compromise between noise filtering and signal integrity.
The EL8178FSZ is rated for operation up to 125°C (TJ). However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and derate the device's performance according to the operating temperature.
Renesas provides a troubleshooting guide in the application note 'EL8178FSZ Troubleshooting Guide' (document number R01AN4394EU0100). This guide covers common issues, such as output voltage errors, oscillations, and noise, and provides steps to identify and resolve the problems.
