EL817S1(A)(TU)-F footprint, schematic symbol and 3D model by Everlight

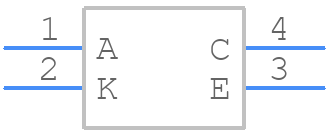

Symbol

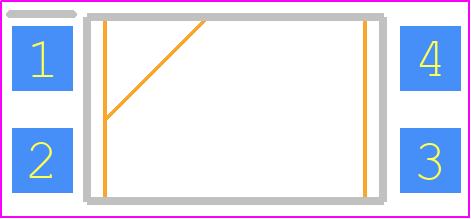

PCB Footprints

3D Models

EL817S1(A)(TU)-F Details

The recommended operating temperature range for the EL817S1(A)(TU)-F is -40°C to 85°C.
Handle the EL817S1(A)(TU)-F by the edges to prevent damage to the photodiode. Avoid touching the optical surface or the leads.
The maximum reverse voltage that the EL817S1(A)(TU)-F can withstand is 20V.
Store the EL817S1(A)(TU)-F in a dry, dark place at room temperature (20°C to 30°C) and humidity below 60%.
While the EL817S1(A)(TU)-F is not recommended for use in high-humidity environments, it can operate in humidities up to 80% RH at 30°C. However, prolonged exposure to high humidity may affect its performance and reliability.

Community Provided

System Verified

Community Approved

Use the download button to access the EL817S1(A)(TU)-F schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like EL817, or try a keyword search, such as Optocoupler
