- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for EL817S1(C)(TU)-FG
- Part Number EL817S1(C)(TU)-FG
- Manufacturer Everlight
- Pin Count 4
- Part Category Phototransistor
- Package Category Small Outline Packages

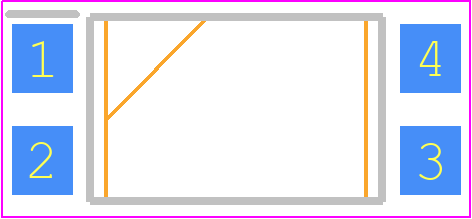

- Footprint Name Small Outline Packages - EL816S1(J)(TU)-V
- Released Date Dec 30, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
EL817S1(C)(TU)-FG Details
-
Manufacturer Part Number:
EL817S1(C)(TU)-FG
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Compliant
-
Manufacturer:
Everlight Electronics Co Ltd
-
Optoelectronic Device Type:
TRANSISTOR OUTPUT OPTOCOUPLER
-
Terminal Finish:
NOT SPECIFIED
Trust Checks
Community Provided
System Verified
Community Approved
EL817S1(C)(TU)-FG Overview

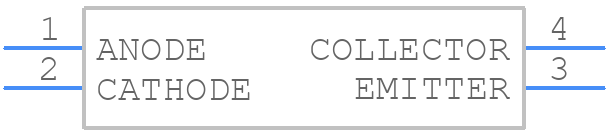

Use the download button to access the EL817S1(C)(TU)-FG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EL817,
or try a keyword search, such as Optocoupler
