ELD-512SYGWA/S530-E2 - Everlight

Description: LED Displays & Accessories DUAL DIGIT DISPLAY 0.56" SUPER YEL GRN

Download ELD-512SYGWA/S530-E2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

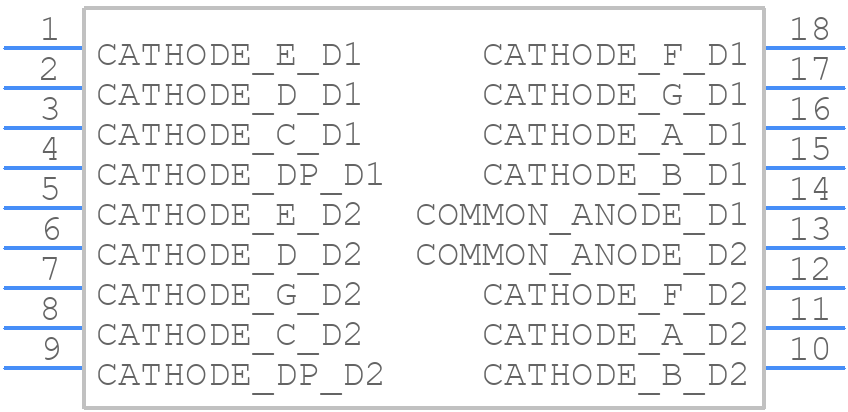

ELD-512SYGWA/S530-E2 - Everlight - PCB symbol
click to zoom
PCB Footprints

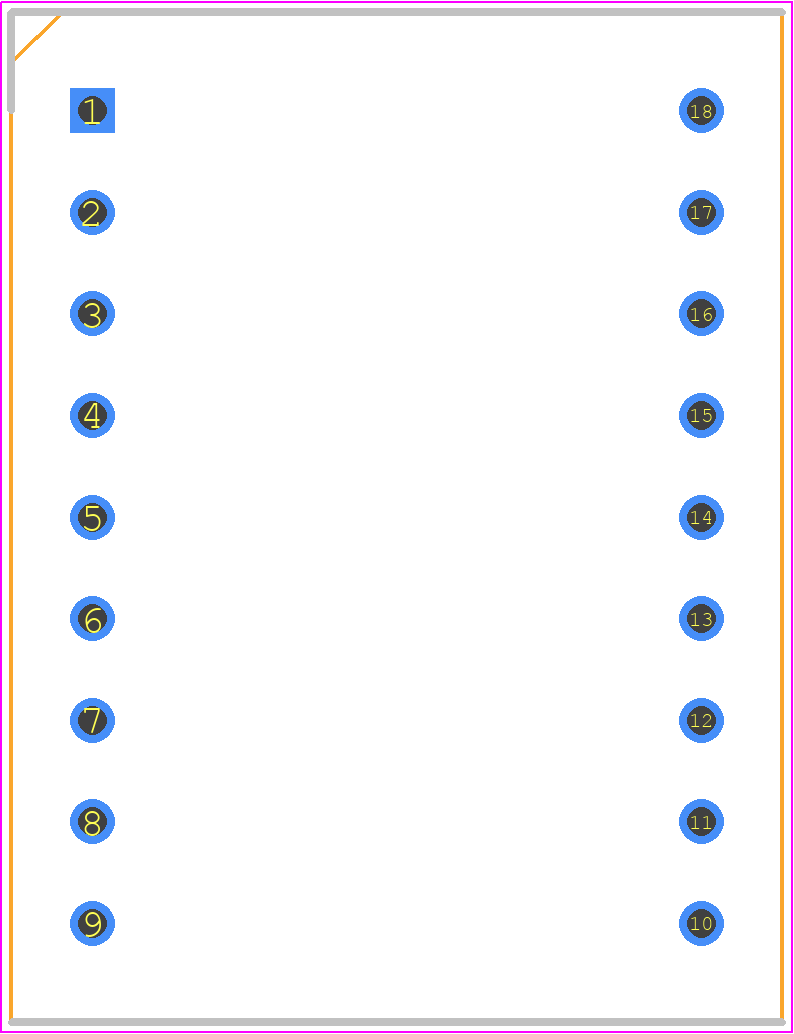

ELD-512SYGWA/S530-E2 - Everlight PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 18-DIP_2023
click to zoom

ELD-512SYGWA/S530-E2 Details

  • Manufacturer Part Number:

    ELD-512SYGWA/S530-E2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • Package Description:

    ROHS COMPLIANT PACKAGE-18

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Everlight Electronics Co Ltd

  • YTEOL:

    2

  • Additional Feature:

    HIGH RELIABILITY

  • Color:

    BRILLIANT YELLOW GREEN

  • Configuration:

    COMMON ANODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.025 A

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

ELD-512SYGWA/S530-E2 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range is -20°C to 70°C, with a storage temperature range of -30°C to 80°C.
  • The ELD-512SYGWA/S530-E2 uses a serial interface, specifically the SPI (Serial Peripheral Interface) protocol, to communicate with the host microcontroller.
  • The typical power consumption of the ELD-512SYGWA/S530-E2 is around 1.5W, with a maximum rating of 2.5W.
  • While the ELD-512SYGWA/S530-E2 is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection and consideration for environmental factors such as temperature, humidity, and UV exposure.
  • The viewing angle of the ELD-512SYGWA/S530-E2 is typically around 120° to 150°, depending on the specific application and display configuration.
