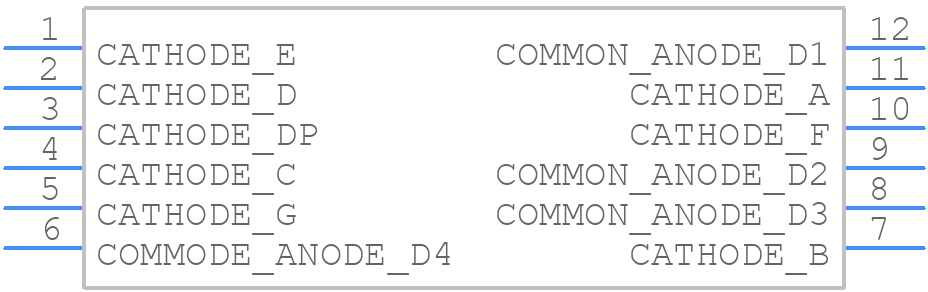

Symbol

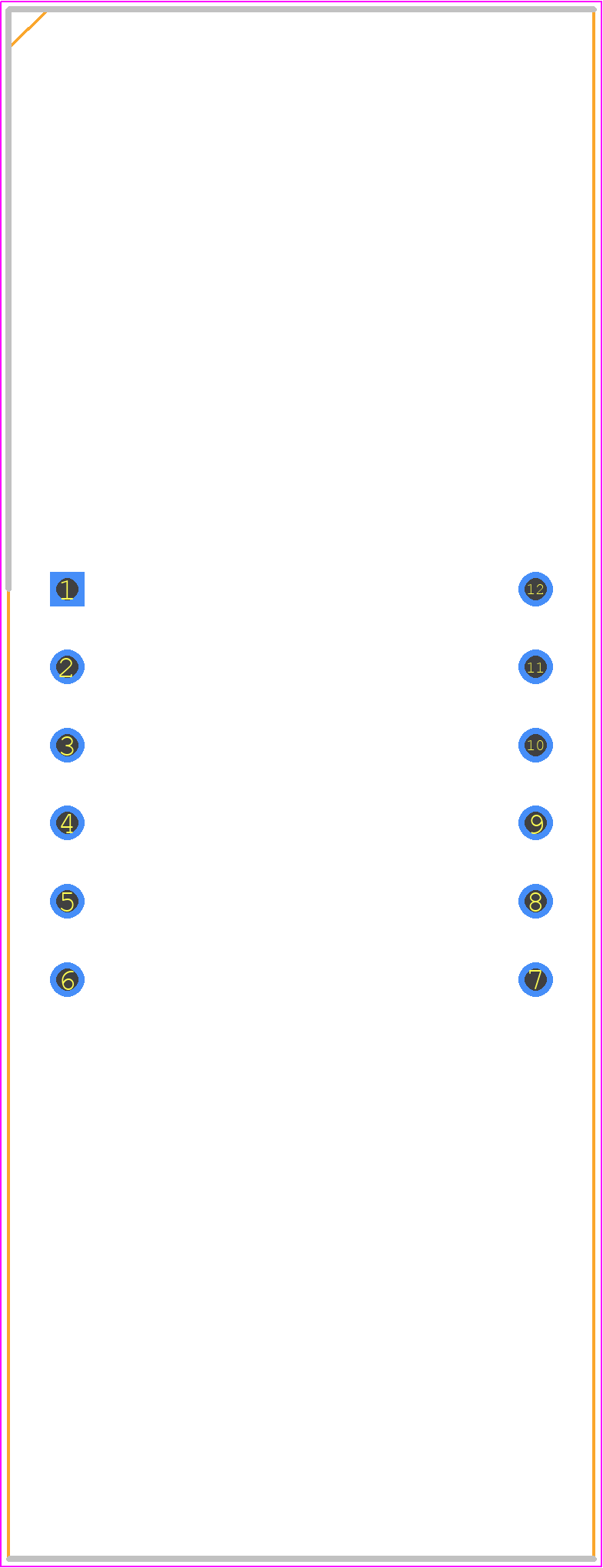

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ELF-512SUBWB/X9/S800
- Part Number ELF-512SUBWB/X9/S800
- Manufacturer Everlight
- Pin Count 12
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - ELF-512SUBWB/X9/S800
- Released Date Apr 20, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ELF-512SUBWB/X9/S800 Details
-
Manufacturer Part Number:
ELF-512SUBWB/X9/S800
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8541.40.20.00
-
Manufacturer:
Everlight Electronics Co Ltd
-
YTEOL:
6
-
Color:
BLUE
-
Configuration:
COMMON ANODE, 4 DIGITS WITH DECIMAL POINT
-
Display Height:
14.22 mm
-
Forward Current-Max:
0.025 A
-
Number of Functions:
4
Trust Checks
Expert Contribution
System Verified
Community Approved
ELF-512SUBWB/X9/S800 Overview
Use the download button to access the ELF-512SUBWB/X9/S800 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ELF-5,
or try a keyword search
