ELFH16250 - Amphenol

Description: Pluggable Terminal Blocks Closed End Ver .2 in 16 Pos.

Download ELFH16250 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ELFH16250 - Amphenol - PCB symbol
click to zoom
PCB Footprints

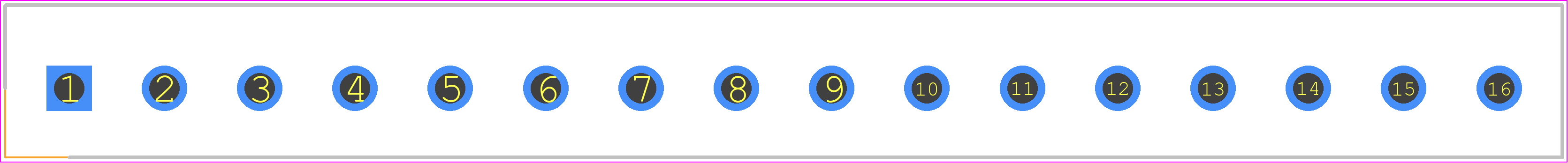

ELFH16250 - Amphenol PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - ELFH16250
click to zoom
3D Models
ELFH16250 - Amphenol - 3D model - Header, Shrouded - Straight PTH Box - ELFH16250
click to zoom

ELFH16250 Details

  • Manufacturer Part Number:

    ELFH16250

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    16

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

ELFH16250 Frequently Asked Questions (FAQs)

  • The recommended torque value for the ELFH16250 connector is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs) for the screw locks, and 1.5 Nm to 2.5 Nm (13.3 in-lbs to 22.1 in-lbs) for the jack screws.
  • Yes, the ELFH16250 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Cat. 2, which includes sinusoidal vibration testing at 10-2000 Hz, 10 G peak acceleration, and random vibration testing at 10-2000 Hz, 10 G RMS acceleration.
  • Yes, the ELFH16250 connector is designed to operate in harsh environments. It has a temperature range of -40°C to +125°C (-40°F to +257°F) and meets the requirements of IEC 60529 IP67 for ingress protection against dust and water.
  • The ELFH16250 connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent mating and unmating.
  • Yes, the ELFH16250 connector is part of the ELFH series and is compatible with other connectors in the series, including the ELFH16200, ELFH16210, and ELFH16220.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ELFH16250 Overview

Use the download button to access the ELFH16250 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ELFH1, or try a keyword search, such as Terminals and Terminal Blocks

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
