ELM-2881SURWA/S530-A2 footprint, schematic symbol and 3D model by Everlight

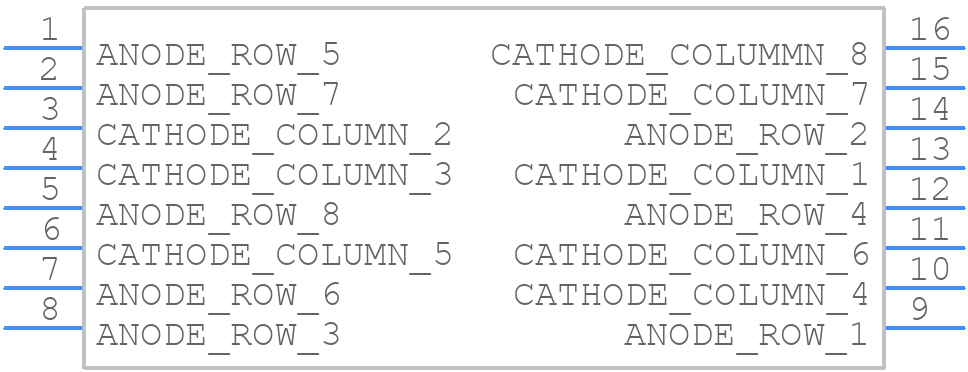

Symbol

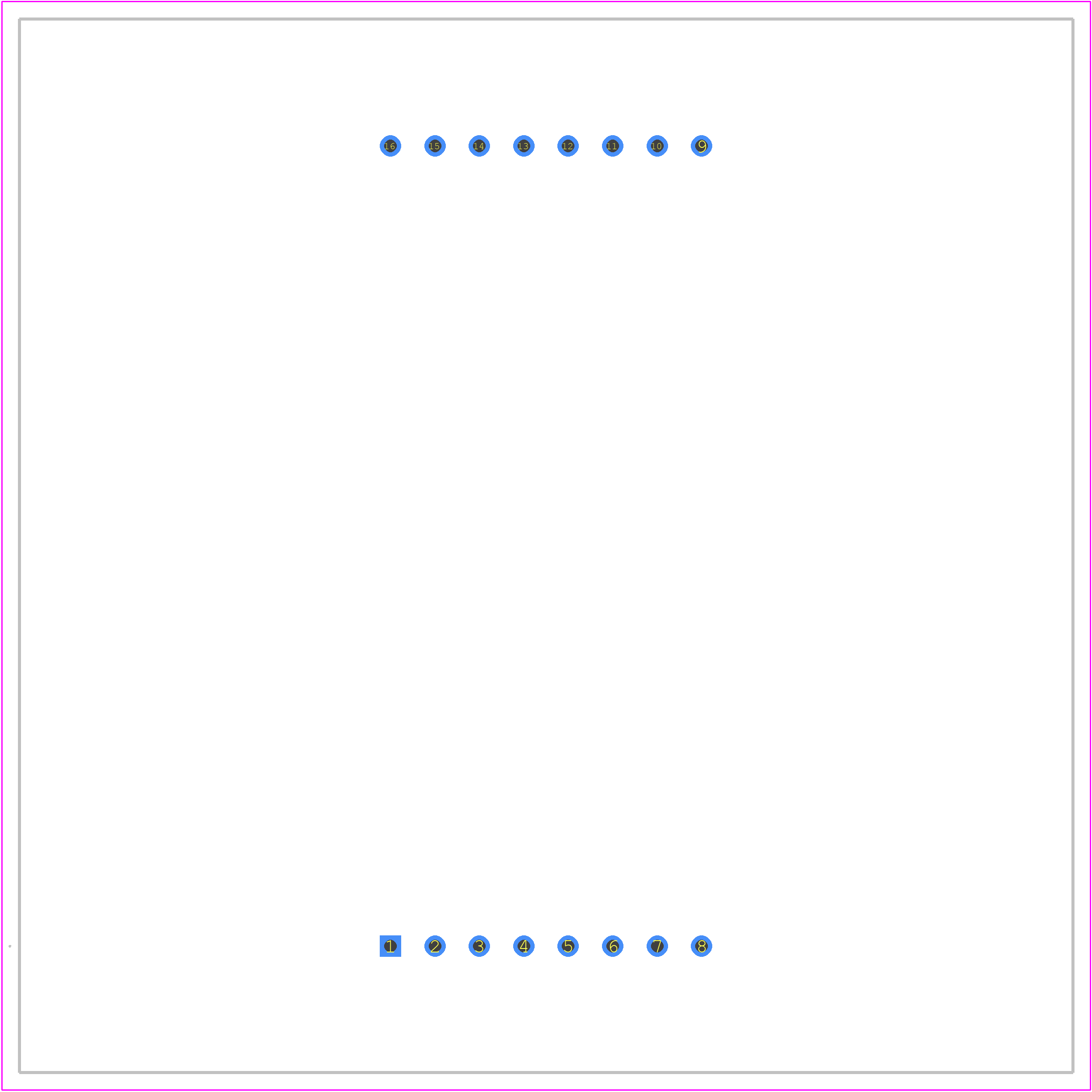

PCB Footprints

3D Models

ELM-2881SURWA/S530-A2 Details

The recommended storage temperature for ELM-2881SURWA/S530-A2 is -40°C to 100°C, with a relative humidity of 60% or less.
Yes, ELM-2881SURWA/S530-A2 is suitable for outdoor applications due to its high luminous intensity and IP67 rating, which provides protection against dust and water ingress.
The typical forward voltage of ELM-2881SURWA/S530-A2 is around 2.8-3.2V, but it can vary depending on the operating current and temperature.
Yes, ELM-2881SURWA/S530-A2 is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
The minimum luminous intensity of ELM-2881SURWA/S530-A2 is 1400mcd, with a typical value of 1800mcd.

Community Provided

System Verified

Community Approved

Use the download button to access the ELM-2881SURWA/S530-A2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ELM-2, or try a keyword search, such as LED Displays
