ELS-315SYGWA/S530-E2 - Everlight

Description: LED Displays & Accessories Single Digit Display

Download ELS-315SYGWA/S530-E2 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ELS-315SYGWA/S530-E2 model

Email notifications will be applied after download.

Send part feedback

Symbol

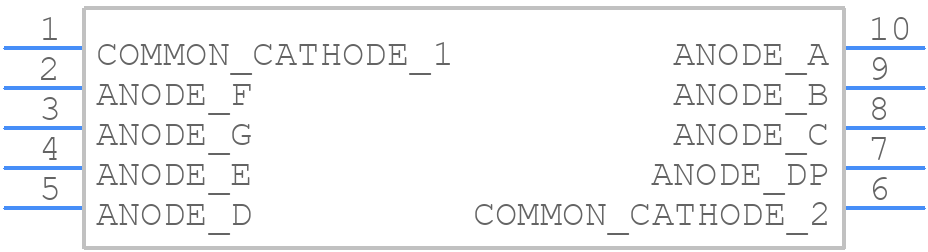

ELS-315SYGWA/S530-E2 - Everlight - PCB symbol

PCB Footprints

ELS-315SYGWA/S530-E2 - Everlight PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - ELS-315SY

Datasheet Download Datasheet
Stock & Prices Price & Stock for ELS-315SYGWA/S530-E2
Part Number ELS-315SYGWA/S530-E2
Manufacturer Everlight
Pin Count 10
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - ELS-315SY
Released Date Nov 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ELS-315SYGWA/S530-E2 Details

Manufacturer Part Number:
ELS-315SYGWA/S530-E2
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT PACKAGE-10
ECCN Code:
EAR99
HTS Code:
8541.40.20.00
Manufacturer:
Everlight Electronics Co Ltd
YTEOL:
6
Additional Feature:
HIGH RELIABILITY
Color:
BRILLIANT YELLOW GREEN
Color@Wavelength:
Green-Yellow
Configuration:
COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display Height:
9.14 mm
Forward Current-Max:
0.025 A
Forward Voltage-Max:
2.4 V
Number of Characters:
1
Number of Functions:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY
Peak Wavelength:
575 nm

ELS-315SYGWA/S530-E2 Frequently Asked Questions (FAQs)

The recommended storage temperature range for ELS-315SYGWA/S530-E2 is -40°C to 100°C.
Yes, ELS-315SYGWA/S530-E2 is suitable for outdoor applications due to its high luminous intensity and resistance to environmental factors such as moisture and UV radiation.
The typical junction temperature of ELS-315SYGWA/S530-E2 is 125°C.
Yes, ELS-315SYGWA/S530-E2 is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, and cadmium.
The recommended soldering temperature profile for ELS-315SYGWA/S530-E2 is 260°C for 3 seconds, with a peak temperature of 240°C.
