ELSD-406SURWA/S530-A4/S290 footprint, schematic symbol and 3D model by Everlight

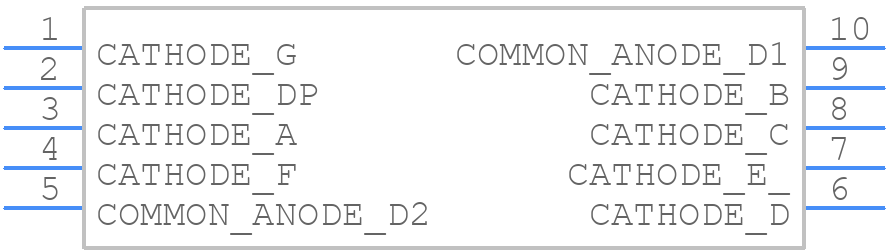

Symbol

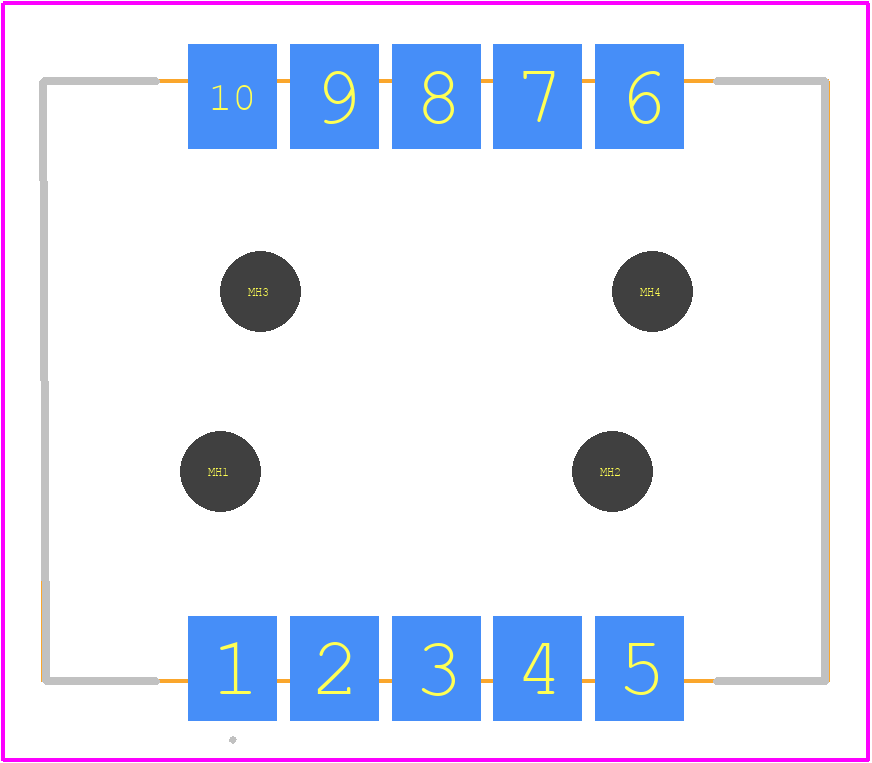

PCB Footprints

3D Models

ELSD-406SURWA/S530-A4/S290 Details

The recommended storage temperature range for ELSD-406SURWA is -40°C to 100°C.
Yes, ELSD-406SURWA is suitable for outdoor applications due to its high luminous intensity and IP67 rating, which provides protection against dust and water.
The typical forward voltage of ELSD-406SURWA is 2.0V to 2.5V, depending on the operating current.
Yes, ELSD-406SURWA is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
The maximum operating current for ELSD-406SURWA is 30mA, and it is recommended to operate within the specified current range to ensure reliability and longevity.

Community Provided

System Verified

Community Approved

Use the download button to access the ELSD-406SURWA/S530-A4/S290 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ELSD-, or try a keyword search
