ELSS-206SURWA/S530-A3/S290 footprint, schematic symbol and 3D model by Everlight

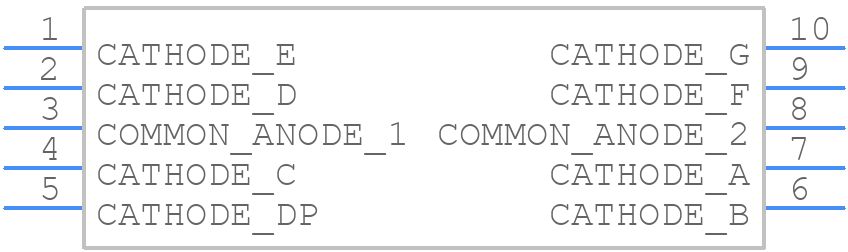

Symbol

PCB Footprints

3D Models

ELSS-206SURWA/S530-A3/S290 Details

The recommended storage temperature range is -40°C to 100°C, as per the manufacturer's guidelines.
Yes, the device is designed to operate in humid environments, but it's recommended to follow the manufacturer's guidelines for humidity levels and take necessary precautions to prevent moisture ingress.
The maximum soldering temperature is 260°C for a maximum of 10 seconds, as per the manufacturer's recommendations.
Yes, the device is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of hazardous substances in electrical and electronic equipment.
The typical forward voltage drop is around 2.0-2.5V, depending on the operating current and temperature.

Community Provided

System Verified

Community Approved

Use the download button to access the ELSS-206SURWA/S530-A3/S290 schematic symbol, PCB footprint, and 3D model.
