ELSS-406SYGWA/S530-E2 - Everlight

Description: DISP 7SEG 0.39" SGL YLW-GN 10SMD

Download ELSS-406SYGWA/S530-E2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

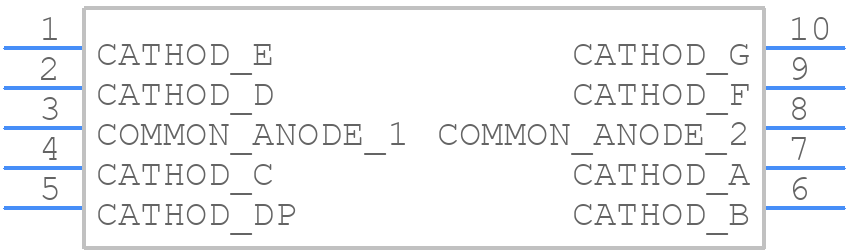

Symbol
ELSS-406SYGWA/S530-E2 - Everlight - PCB symbol
click to zoom

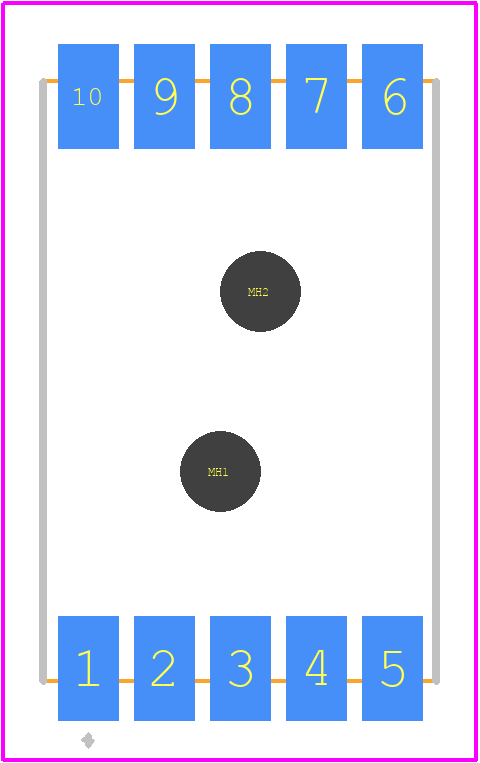

PCB Footprints
ELSS-406SYGWA/S530-E2 - Everlight PCB footprint - Other - Other - ELSS-406SYGWA/S530-E2-3
click to zoom
3D Models
ELSS-406SYGWA/S530-E2 - Everlight - 3D model - Other - ELSS-406SYGWA/S530-E2-3
click to zoom

ELSS-406SYGWA/S530-E2 Details

  • Manufacturer Part Number:

    ELSS-406SYGWA/S530-E2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • Package Description:

    ROHS COMPLIANT, SMD, 10 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Everlight Electronics Co Ltd

  • YTEOL:

    2

  • Color:

    BRILLIANT YELLOW GREEN

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    10 mm

  • Forward Current-Max:

    0.025 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

ELSS-406SYGWA/S530-E2 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for ELSS-406SYGWA/S530-E2 is -20°C to 40°C, with a relative humidity of 60% or less.
  • While the ELSS-406SYGWA/S530-E2 is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures.
  • The typical forward voltage drop for ELSS-406SYGWA/S530-E2 is around 2.0-2.5V at a forward current of 20mA.
  • Yes, ELSS-406SYGWA/S530-E2 is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The maximum allowable current for ELSS-406SYGWA/S530-E2 is 30mA, with a pulse width of 10ms or less.
